F20AM (2000)
Lower Casing. Drive 2

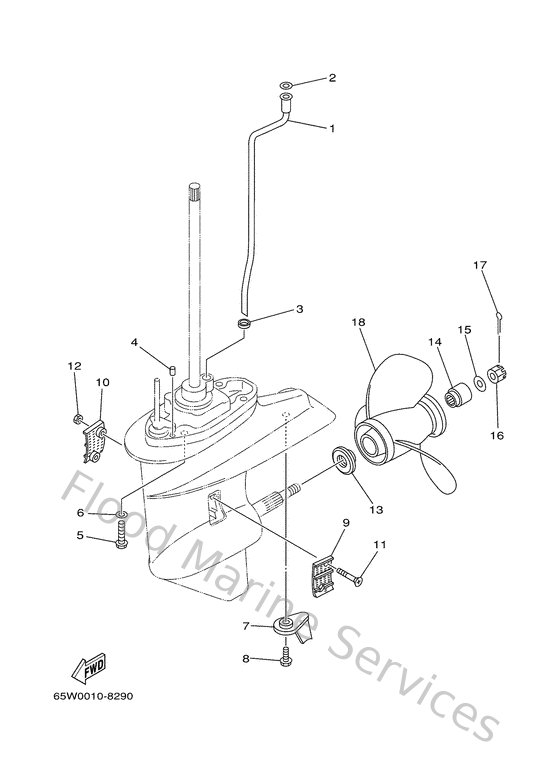

Diagram: Lower Casing. Drive 2
Parts List
Reference
Description
Price
1
65W443610000
Tube, water
Loading…
↗
2
902021206000
Washer, plate(663)
Loading…
↗
3
904301207200
Gasket
Loading…
↗
4
9360611M2400
Pin, dowel
Loading…
↗
5
9010510M1200
Bolt (689)
Loading…
↗
6
929951060000
Washer, plate
Loading…
↗
7
61N453710000
Tab-trim
Loading…
↗
8
9011906M4800
Bolt, with washer(61n)
Loading…
↗
9
6L2452140000
Cover, water inlet
Loading…
↗
10
6L2452150000
Cover, water inlet
Loading…
↗
11
9015105M0500
Screw, countersunk
Loading…
↗
12
901850500200
Nut nylon (sus)(ex4)
Loading…
↗
13
6L2459870100
Spacer
Loading…
↗
14
689459970000
Spacer
Loading…
↗
15
929901420000
Washer, plain
Loading…
↗
16
901711401300
Nut(664)
Loading…
↗
17
914903002200
Pin, cotter
Loading…
↗
18
6644594902EL
Propeller (3x9-7/8 x13 -f)
Loading…
↗
