30AMH (1992)
Magneto

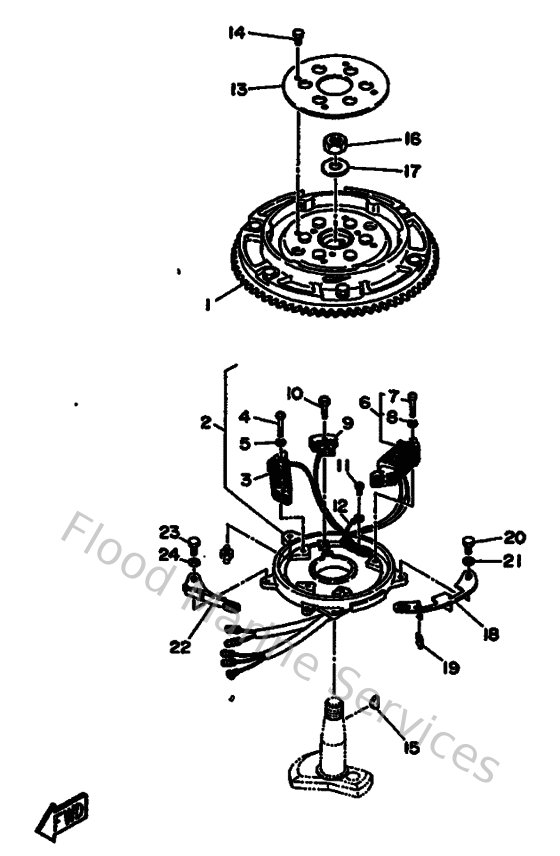

Diagram: Magneto
Parts List
Reference
Description
Price
3
689813114000
Coil, source
Loading…
↗
4
985030502500
Screw, panhead (a93)
Loading…
↗
5
929010510000
Ybs67-5 washer, spring
Loading…
↗
7
985800552500
Screw, panhead (a93)
Loading…
↗
9
689855804000
Coil, Pulser
Loading…
↗
10
979020412200
Screw, with washer(6m6)
Loading…
↗
11
985170400600
Screw, pan head(3xp)
Loading…
↗
14
973130801200
Bolt(62e)
Loading…
↗
15
902800504900
Key, woodruff (12r)
Loading…
↗
16
9017916M0500
Nut (689)
Loading…
↗
17
9020116M4400
Washer (689)
Loading…
↗
18
689416158000
Stopper, Magneto Base
Loading…
↗
19
689441940000
Cap
Loading…
↗
20
973130601000
Bolt
Loading…
↗
21
929900660000
Washer, plain (646)
Loading…
↗
23
973950501000
Bolt (682)
Loading…
↗
24
929900560000
Washer, plain (646)
Loading…
↗
