55BM (1992)
Magneto

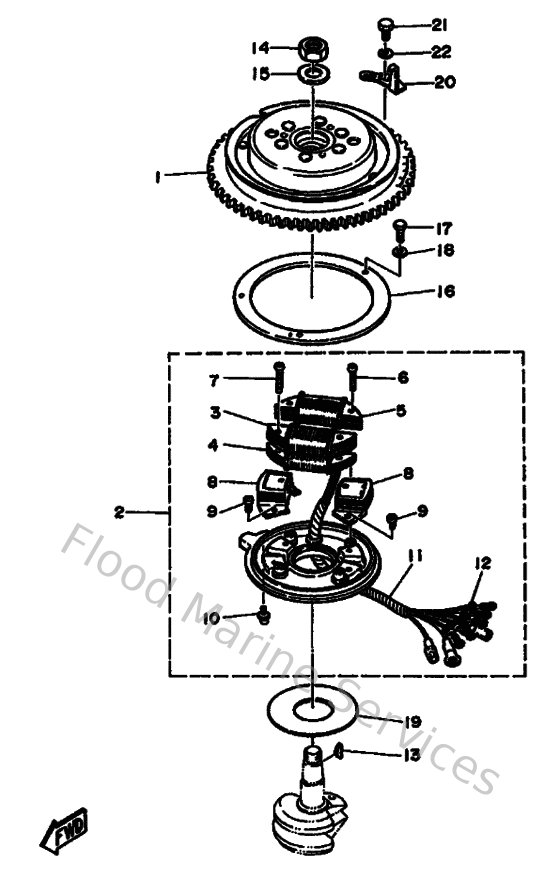

Diagram: Magneto
Parts List
Reference
Description
Price
3
66385541A000
Coil, Charge
Loading…
↗
4
66385565A000
Module, Diode
Loading…
↗
5
66381313A000
Coil, Lighting 1
Loading…
↗
6
985010503000
Ybs86-530 screw,panhead
Loading…
↗
7
985800503500
Screw, pan head (686)
Loading…
↗
9
985800401000
Screw, pan head (e56)
Loading…
↗
10
663855180000
Joint, ball
Loading…
↗
12
904800615800
Grommet (663)
Loading…
↗
13
902800504900
Key, woodruff (12r)
Loading…
↗
14
901702013700
Nut, hexagon(663)
Loading…
↗
15
9020121M1800
Washer, plate (663)
Loading…
↗
16
663416120000
Retainer, magneto base 2
Loading…
↗
17
973130602000
Bolt(7u8)
Loading…
↗
18
929900660000
Washer, plain (646)
Loading…
↗
19
663416190000
Washer, magneto 2
Loading…
↗
20
697813320000
Plate, timing
Loading…
↗
21
973950601600
Bolt, hexagon deep recess
Loading…
↗
