70BETO (1985)
Magneto

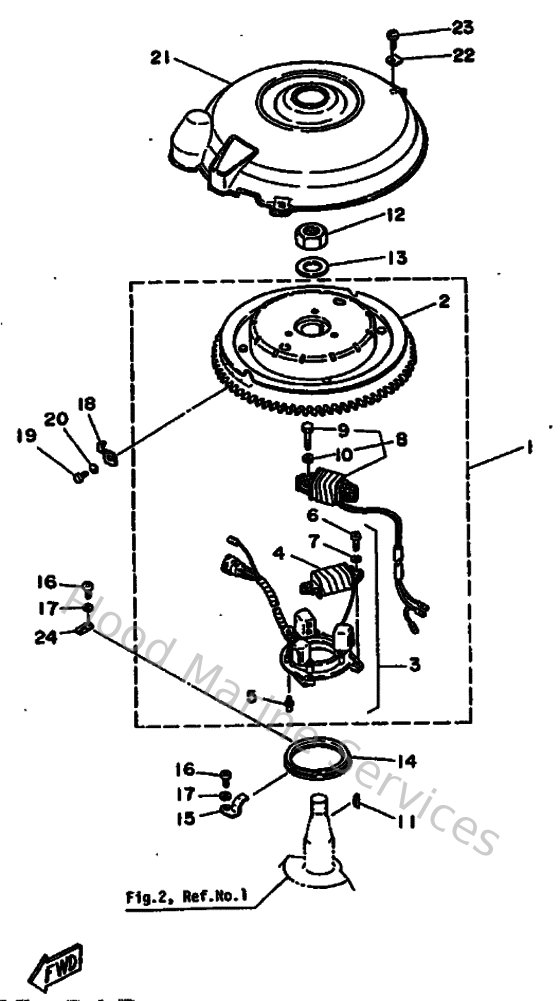

Diagram: Magneto
Parts List
Reference
Description
Price
2
6H385550A000
Rotor assembly
Loading…
↗
3
6H385510A000
Stator assembly
Loading…
↗
4
6H3855200000
Charge coil assembly
Loading…
↗
5
663855180000
Joint, ball
Loading…
↗
6
985020501600
Screw, pan head(6b0)
Loading…
↗
7
929900510000
Ybs67-5 washer, spring
Loading…
↗
8
6H381303A000
Lighting coil assembly
Loading…
↗
9
973130603000
Bolt
Loading…
↗
10
929030660000
Washer, plain (646)
Loading…
↗
11
902800501500
Key, woodruff
Loading…
↗
12
901702013700
Nut, hexagon(663)
Loading…
↗
13
9020121M1800
Washer, plate (663)
Loading…
↗
14
6H3416110000
Retainer, Magneto Base
Loading…
↗
15
6H3416120000
Retainer, magneto base 2
Loading…
↗
16
978030601200
Screw, pan head(62j)
Loading…
↗
18
6E5813320000
Plate, timing
Loading…
↗
19
978030601000
Screw pan head
Loading…
↗
21
6H3813370000
Cover, flywheel
Loading…
↗
22
9020906M0400
Washer
Loading…
↗
23
978030601600
Screw, pan
Loading…
↗
24
6H3416121000
Retainer, magneto base 2
Loading…
↗
