L250AETO (1992)
Magneto

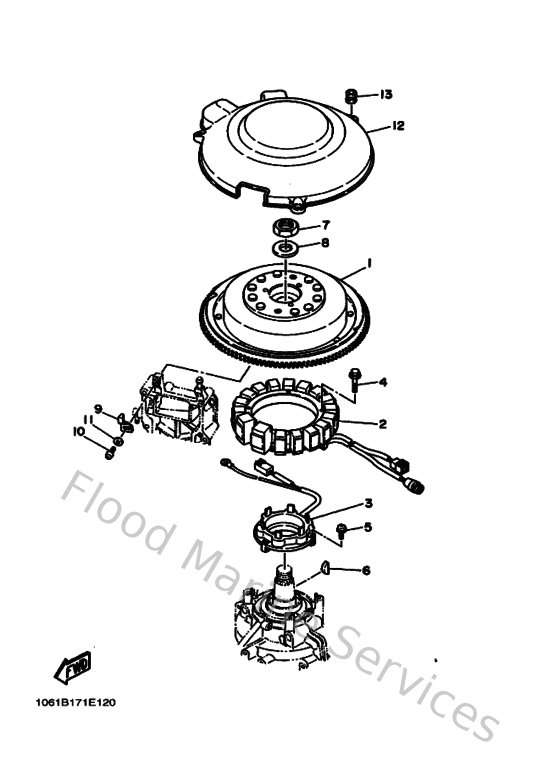

Diagram: Magneto
Parts List
Reference
Description
Price
1
61A855500000
Rotor assembly
Loading…
↗
2
61A855100000
Stator assembly
Loading…
↗
3
61A855800000
Coil, pulser
Loading…
↗
4
973130603000
Bolt
Loading…
↗
5
979850533000
Screw, with washer(61b)
Loading…
↗
6
902800504900
Key, woodruff (12r)
Loading…
↗
7
9017024M2200
Nut(61a)
Loading…
↗
8
9020125M0200
Washer, plate(61a)
Loading…
↗
9
6E5813320000
Plate, timing
Loading…
↗
10
979850621000
Screw pan head
Loading…
↗
11
929900660000
Washer, plain (646)
Loading…
↗
12
61A813370000
Cover, flywheel
Loading…
↗
13
663823170000
Damper, ignition coil
Loading…
↗
