F225CET (2009)
OIL PAN

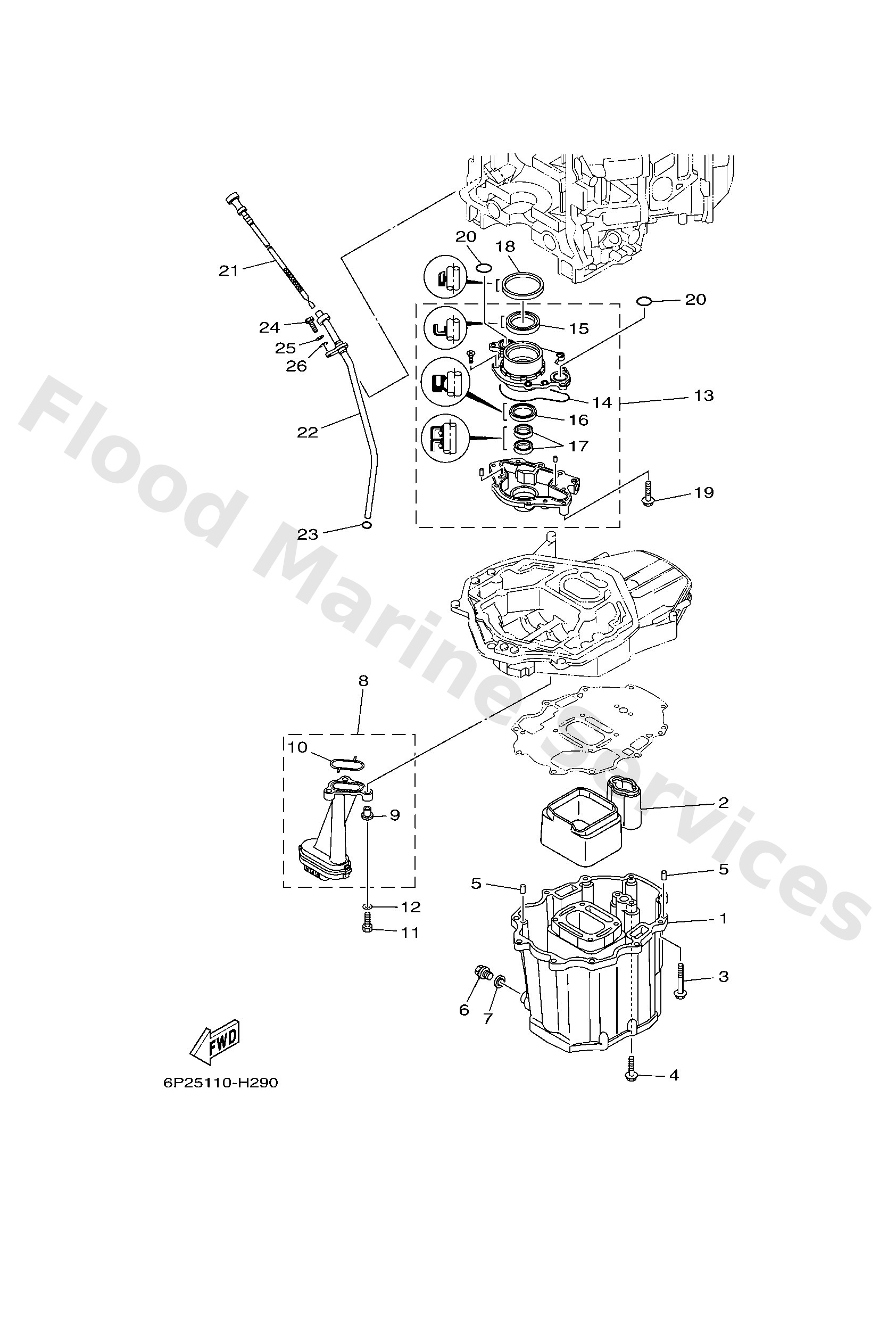

Diagram: OIL PAN
Parts List
Reference
Description
Price
1
69J1531100CA
Oil pan
Loading…
↗
2
69J1576100
Seal, rubber 1
Loading…
↗
3
9757508560
Bolt, hexagon w/w deep recess
Loading…
↗
4
9757508535
Bolt(70w)
Loading…
↗
5
9360816M16
Pin, dowel(6t4)
Loading…
↗
6
9034014M06
Plug, straight screw(62y)
Loading…
↗
7
9043014M09
Gasket
Loading…
↗
8
69J1341100
Strainer, oil
Loading…
↗
9
9038706M64
Collar
Loading…
↗
10
69J1341500
Seal, oil strainer
Loading…
↗
11
9702706025
Bolt, hexagon
Loading…
↗
12
9290706600
Washer(6ta)
Loading…
↗
13
69J1330002
Oil pump assembly
Loading…
↗
14
69J1332900
Gasket, pump cover
Loading…
↗
15
69J1333800
Oil seal
Loading…
↗
16
6AW1311900
Oil seal
Loading…
↗
17
69J1363100
Oil seal
Loading…
↗
18
69J1135500
Seal, cylinder 1
Loading…
↗
19
9757506540
Bolt, hexagon w/w deep recess
Loading…
↗
20
9321025552
O-ring (22f)
Loading…
↗
21
6P21536200
Plug, oil level
Loading…
↗
22
6P21537700
Guide, inlet
Loading…
↗
23
9321019MJ3
O-ring
Loading…
↗
24
9709506020
Bolt(7u8)
Loading…
↗
25
9299506100
Washer(6a1)
Loading…
↗
26
9299506600
Washer, plain (646)
Loading…
↗
