D150HETO (2002)
OIL TANK

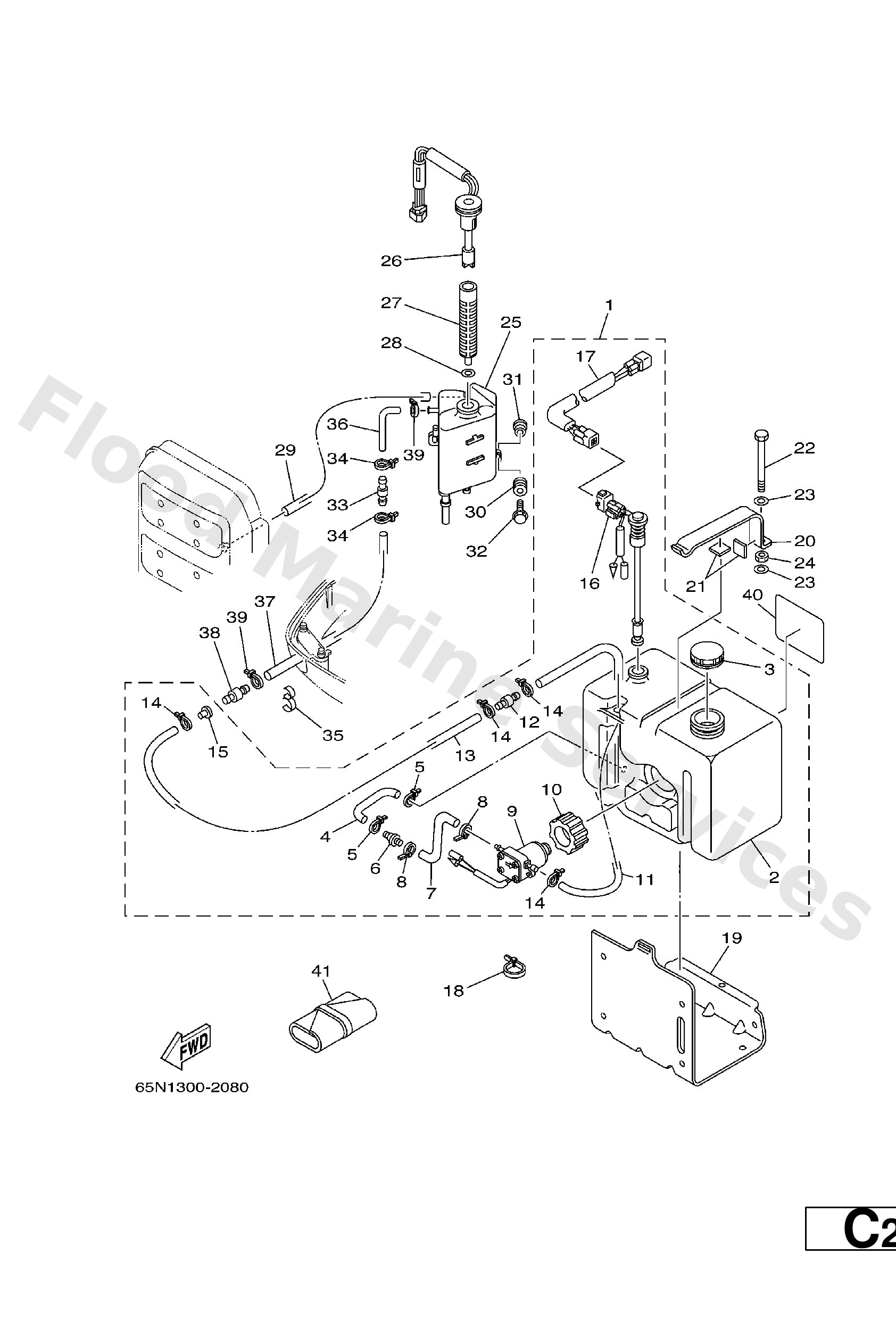

Diagram: OIL TANK
Parts List
Reference
Description
Price
1
61A2170803
Sub oil tank assembly.
Loading…
↗
2
6E52173302
Sub tank, oil (10.5l)
Loading…
↗
3
6E52177003
Oil tank cap assembly
Loading…
↗
4
6E52432200
Pipe 11
Loading…
↗
5
9046511M10
Clamp
Loading…
↗
6
6462425102
Strainer 1
Loading…
↗
7
6E52431901
Pipe, oil
Loading…
↗
9
6E58190001
Oil feed pump assembly
Loading…
↗
10
6E58192200
Grommet
Loading…
↗
11
6E52432101
Pipe 10
Loading…
↗
12
6E52437900
Pipe, joint 4
Loading…
↗
13
9044511M26
Hose (l8000)
Loading…
↗
15
9048006M19
Grommet (6e3)
Loading…
↗
16
6E58572004
Oil level gauge assembly
Loading…
↗
17
6R38572180
Wire, lead
Loading…
↗
18
9046513M11
Clamp (6e5)
Loading…
↗
19
6E5217340133
Holder, oil sub tank
Loading…
↗
20
6E5217980133
Bracket, damper
Loading…
↗
21
6E52174600
Damper
Loading…
↗
22
9708006100
Bolt, hexagon
Loading…
↗
23
9299006600
Washer, plain (646)
Loading…
↗
24
9538006600
Nut(661)
Loading…
↗
25
6E52175005
Oil tank assembly
Loading…
↗
26
6R38573003
Oil level gauge assembly
Loading…
↗
27
6E51341100
Strainer, oil
Loading…
↗
28
6E51341400
Gasket, strainer cover
Loading…
↗
29
9044505M02
Hose (l700)
Loading…
↗
30
6A08231700
Damper, ignition coil
Loading…
↗
31
6244254200
Collar
Loading…
↗
32
9011906M65
Bolt, with washer
Loading…
↗
35
9046413M34
Clamp(6r3)
Loading…
↗
36
64E2432300
Pipe 12
Loading…
↗
37
9044512207
Hose (l3000)
Loading…
↗
40
6E51343762
Mark, Caution
Loading…
↗
41
656W281002
Tool kit
Loading…
↗
