Yamaha Outboard Parts - Oil Pan - F20AM (2000) | Flood Marine
New Search
Parts
New Outboards
Home
F20AM (2000)
Oil Pan

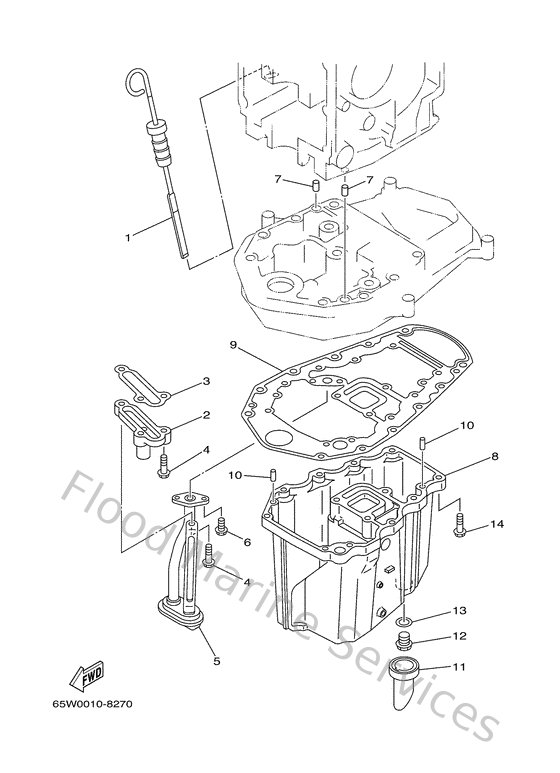

Diagram: Oil Pan
Parts List
Reference
Description
Price
1
65W153620100
Plug, oil level
Loading…
↗
2
62Y115750000
Relief valve ass'y
Loading…
↗
3
62Y134750000
Gasket
Loading…
↗
4
975130652500
Bolt, with washer(61b)
Loading…
↗
5
65W134110000
Strainer, oil
Loading…
↗
6
975130651600
Bolt, hexagon deep recess
Loading…
↗
7
9360812M0500
Pin, dowel b (6e5)
Loading…
↗
8
65W1531103CA
Oil pan
Loading…
↗
9
62Y153120000
Gasket, oil pan
Loading…
↗
10
936061201900
Pin, dowel (614)
Loading…
↗
11
65W153160000
Damper 1
Loading…
↗
12
9034014M0600
Plug, straight screw(62y)
Loading…
↗
13
9043014M0900
Gasket
Loading…
↗
14
975750652500
Bolt, hexagon w/w deep recess
Loading…
↗
