115BETO (1992)
Oil Pump

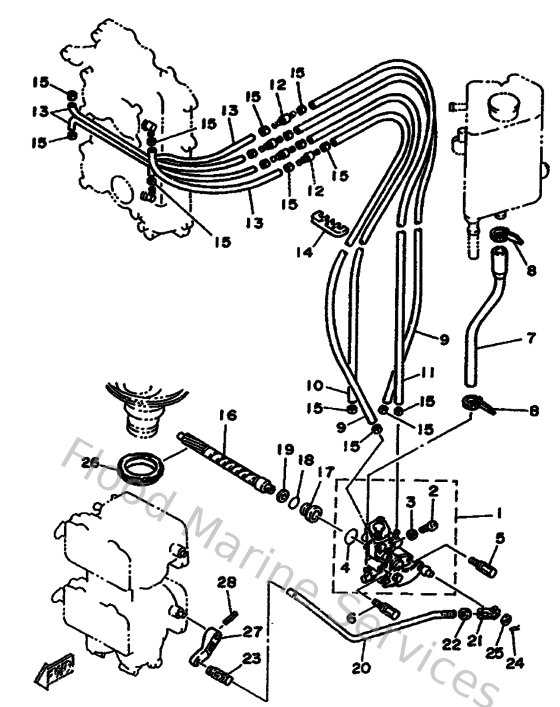

Diagram: Oil Pump
Parts List
Reference
Description
Price
2
716244440000
Screw
Loading…
↗
3
6L2134750000
Gasket, breather bolt
Loading…
↗
4
9321019MA700
O-ring(6r0)
Loading…
↗
5
9010906M4000
Bolt(6h0)
Loading…
↗
6
9010906M3900
Bolt(6h0)
Loading…
↗
8
904651009800
Clamp
Loading…
↗
11
9044507M7300
Hose (l390)
Loading…
↗
12
6R3131830000
Valve, check
Loading…
↗
13
9044507M9000
Hose (l390)
Loading…
↗
14
9046407M0600
Clamp (6e5)
Loading…
↗
15
9046807M0200
Clip (6e5)
Loading…
↗
16
6R3115370000
Gear, driven
Loading…
↗
17
6R3131170000
Collar, distance
Loading…
↗
18
932101359500
93210-13m04
Loading…
↗
19
9020208M4400
Washer, plate(6r3)
Loading…
↗
20
6R3412410000
Rod, link
Loading…
↗
22
953800560000
Nut, hexagon (663)
Loading…
↗
25
902020508800
Washer, plate (666)
Loading…
↗
26
6R3115360000
Gear, drive
Loading…
↗
28
916903001600
Pin, spring
Loading…
↗
