F6AMH (2001)
Oil Pump

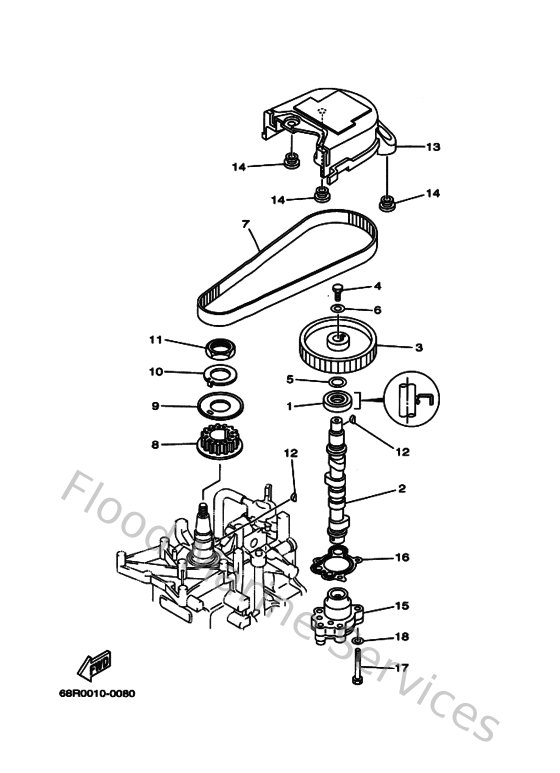

Diagram: Oil Pump
Parts List
Reference
Description
Price
1
9310218M2100
Oil seal (6g8)
Loading…
↗
2
68T121710000
Camshaft 1
Loading…
↗
3
66M115370094
Gear, driven
Loading…
↗
4
970140601600
Bolt, hexagon deep recess
Loading…
↗
5
902011320100
Washer 6474283300
Loading…
↗
6
9020106M9400
Washer (6g8)
Loading…
↗
7
68T462410000
Belt
Loading…
↗
8
68T115360000
Gear, drive
Loading…
↗
9
68T115570000
Washer 1
Loading…
↗
10
6G8115870100
Washer, lock
Loading…
↗
11
9017024M0900
Nut (6g8)
Loading…
↗
12
9028003M0100
Key woodruff 146115450000
Loading…
↗
13
68T462970000
Cover, dust
Loading…
↗
14
904801062700
Grommet
Loading…
↗
15
68T133000000
Oil pump assembly
Loading…
↗
16
68T133290000
Gasket, pump cover
Loading…
↗
17
970950603000
Bolt(jf7)
Loading…
↗
18
929950660000
Washer, plain (646)
Loading…
↗
