4ACMH (1986)
Optional Parts

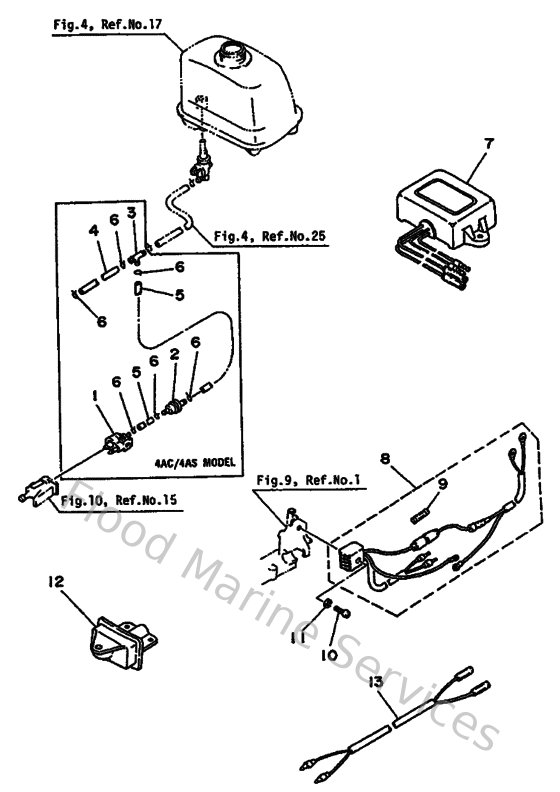

Diagram: Optional Parts
Parts List
Reference
Description
Price
1
6G1243040100
Fuel pipe joint comp. 1
Loading…
↗
2
646242510100
Strainer 1
Loading…
↗
3
688243780000
Pipe, joint
Loading…
↗
4
90445092K100
Hose (l420)
Loading…
↗
5
904450922000
Hose (l1500)
Loading…
↗
6
904670800400
Clip, pipe 6162435600
Loading…
↗
7
663819101000
Voltage Regulator assembly
Loading…
↗
8
676819700000
Rectifier assembly
Loading…
↗
9
663821510000
Fuse
Loading…
↗
10
985800552500
Screw, panhead (a93)
Loading…
↗
11
929030560000
Washer, plain (646)
Loading…
↗
13
6E0835532000
Wire, lead
Loading…
↗
