140AETOL (1996)
Optional Parts 1

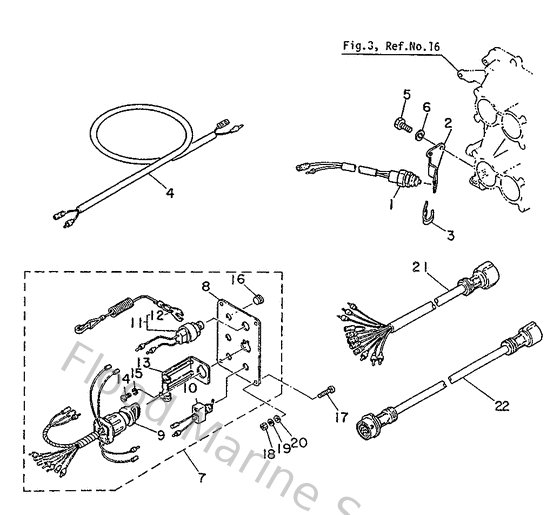

Diagram: Optional Parts 1
Parts List
Reference
Description
Price
1
688825401000
Neutral switch assembly
Loading…
↗
2
6E5825540000
Stay, neutral switch
Loading…
↗
3
663825550100
Plate
Loading…
↗
4
688825411000
Wire, lead
Loading…
↗
5
970950601600
Bolt, hexagon deep recess
Loading…
↗
6
929030610000
Washer(6a1)
Loading…
↗
7
688825701500
Panel switch assembly
Loading…
↗
8
688825711100
Switch panel
Loading…
↗
9
688825101100
Main switch assembly
Loading…
↗
10
688825740000
Switch, choke
Loading…
↗
11
688825750100
Engine stop switch assembly
Loading…
↗
12
682825560000
Lanyard, stop switch
Loading…
↗
13
663825810100
Stay, cord clamp
Loading…
↗
14
983030400800
Screw, pan head (713)
Loading…
↗
15
929010410000
Ybs67-4 washer, spring
Loading…
↗
16
688825350000
Plug(2gu)
Loading…
↗
17
989030502500
Screw, bind
Loading…
↗
18
953800560000
Nut, hexagon (663)
Loading…
↗
19
929030510000
Ybs67-5 washer, spring
Loading…
↗
20
929030560000
Washer, plain (646)
Loading…
↗
21
6888258A1000
10p main harness mec 2m (7ft)
Loading…
↗
22
6888258A3000
10p main harness mec 3m (10ft)
Loading…
↗
