Yamaha Outboard Parts - Optional Parts 6 - 70BETO (1993) | Flood Marine

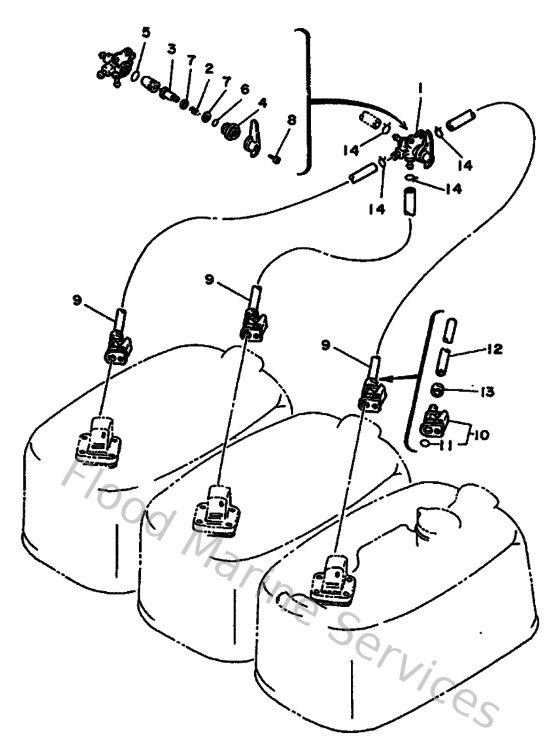

Diagram: Optional Parts 6

Diagram

Parts List

Reference
Description
Price


2
9050112M1300
Spring, compression (688)
Loading…

↗
3
688245540000
Shaft, cock
Loading…

↗
4
688245590000
Cap
Loading…

↗
5
9321020M2800
O-ring (688)
Loading…

↗
6
9321008M2700
O-ring
Loading…

↗
7
9020108M3200
Washer (688)
Loading…

↗
8
987800401600
Screw, flat head(ga5)
Loading…

↗
9
688243070100
Fuel Pipe Comp. 2
Loading…

↗
10
6G1243050000
Fuel pipe joint comp. 2
Loading…

↗
11
932100828700
O-ring (655)
Loading…

↗
12
9044512M0500
Hose (l3000)
Loading…

↗
13
650243515100
Band 1
Loading…

↗
14
9046711M0000
Clip, Scissor
Loading…

↗
