Yamaha Outboard Parts - Optionnelles 1 - 25JETO (1994) | Flood Marine
New Search
Parts
New Outboards
Home
25JETO (1994)
Optionnelles 1

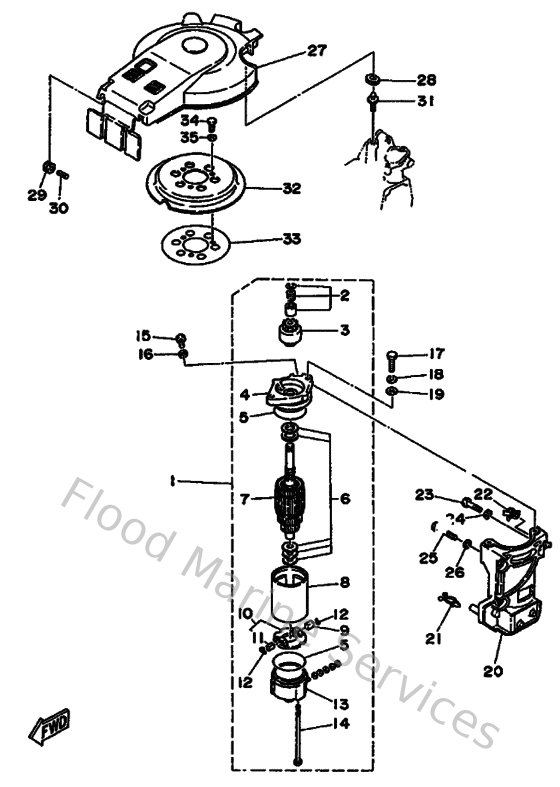

Diagram: Optionnelles 1
Parts List
Reference
Description
Price
1
6F5818001100
Starting motor assembly
Loading…
↗
2
689818571100
Pinion stopper set
Loading…
↗
3
689818071200
Pinion assembly
Loading…
↗
4
6F5818301100
Front cover assembly
Loading…
↗
5
689818471100
O-ring
Loading…
↗
6
689818091100
Washer kit
Loading…
↗
7
689818501200
Armature assembly
Loading…
↗
8
689818101100
Stator ass'y
Loading…
↗
9
689818111100
Brush 1
Loading…
↗
10
689818401100
Brush holder assembly
Loading…
↗
11
689818121100
Brush 2
Loading…
↗
12
689818131000
Spring, brush
Loading…
↗
13
689818201100
Rear cover ass'y
Loading…
↗
14
689818261000
Bolt
Loading…
↗
15
973130801600
Bolt, hexagon
Loading…
↗
16
929900860000
Washer, plain (663)
Loading…
↗
17
973130803000
Bolt
Loading…
↗
18
929900810000
Ybs67-8 washer, spring
Loading…
↗
20
6J8818220094
Bracket, starting motor
Loading…
↗
21
9046412M0900
Clamp(6h4)
Loading…
↗
22
9046403M1500
Clamp(6j8)
Loading…
↗
23
973130803500
Bolt
Loading…
↗
27
6J8813371000
Cover, flywheel
Loading…
↗
28
9048014M1700
Grommet(6j8)
Loading…
↗
29
9048010M1600
Grommet(6j8)
Loading…
↗
30
916905002200
Pin, spring (676)
Loading…
↗
31
6J8813380000
Clamp, lead
Loading…
↗
32
6J815723E100
Pulley, starter
Loading…
↗
33
6J881365A000
Gasket, hole cover
Loading…
↗
34
970110801600
Bolt, hexagon
Loading…
↗
