5CMH (1998)
Partie Electrique 1

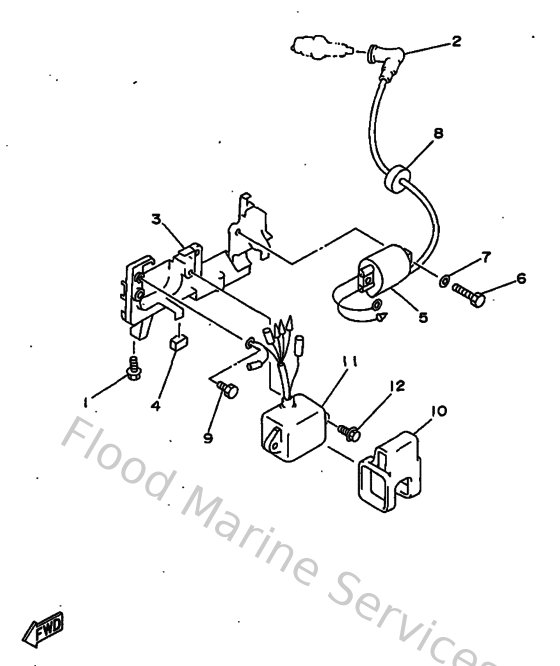

Diagram: Partie Electrique 1
Parts List
Reference
Description
Price
1
958950601600
Bolt, flange deep recess
Loading…
↗
2
6G1823702000
Plug cap assembly
Loading…
↗
3
6E0823160194
Bracket, ignition coil
Loading…
↗
4
6E0823170000
Damper
Loading…
↗
5
6E0855700000
Ignition coil assembly
Loading…
↗
6
970950601600
Bolt, hexagon deep recess
Loading…
↗
7
929900660000
Washer, plain (646)
Loading…
↗
8
904802516100
Grommet(656)
Loading…
↗
9
970950601000
Bolt
Loading…
↗
10
6E0855480000
Holder, wire harness
Loading…
↗
11
6E0855407100
C.d.i. unit assembly
Loading…
↗
12
958950602000
Bolt, flange(jk3)
