FT9.9DMHSL (2000)
Partie Electrique 1

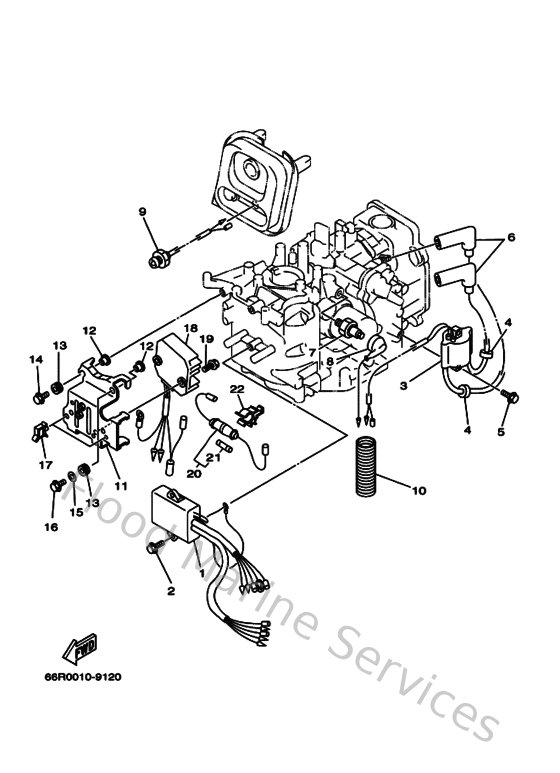

Diagram: Partie Electrique 1
Parts List
Reference
Description
Price
1
66M855400100
C.d.i. Unit assembly
Loading…
↗
2
975950652000
Bolt(7u8)
Loading…
↗
3
66M855700000
Ignition coil assembly
Loading…
↗
4
904802516100
Grommet(656)
Loading…
↗
5
970800602000
Bolt(7u8)
Loading…
↗
6
6G8823703000
Plug cap assembly
Loading…
↗
7
62Y825041000
Oil pressure switch assembly
Loading…
↗
8
66M821271000
Wire, lead 2
Loading…
↗
9
65W854100100
Emergency signal light assembly
Loading…
↗
10
6H1835570000
Tube
Loading…
↗
11
66M855421000
Bracket
Loading…
↗
12
9038706M0500
Collar(6h4)
Loading…
↗
13
9048013M2400
Grommet (6e9)
Loading…
↗
14
958950602000
Bolt, flange(jk3)
Loading…
↗
15
9020106M0500
Washer, plate(6e3)
Loading…
↗
16
9010106M2700
Bolt
Loading…
↗
17
9046409M1300
Clamp (6h1)
Loading…
↗
18
6G881960A100
Rectifier & regulator assembly
Loading…
↗
19
975950651600
Bolt, with washer(6r6)
Loading…
↗
