L130BETOL (1998)
Partie Electrique 2

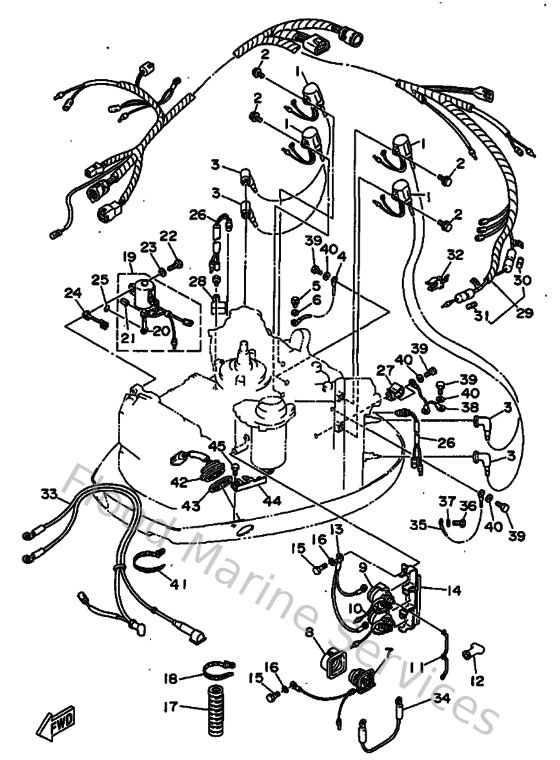

Diagram: Partie Electrique 2
Parts List
Reference
Description
Price
1
6R3855700100
Ignition coil assembly
Loading…
↗
2
975950652000
Bolt(7u8)
Loading…
↗
3
6G1823702000
Plug cap assembly
Loading…
↗
4
662825190000
Wire, earth lead
Loading…
↗
5
970800601200
Bolt(gh1)
Loading…
↗
6
929900660000
Washer, plain (646)
Loading…
↗
7
61A819410000
Starter relay assembly
Loading…
↗
8
689819521000
Holder, starter relay
Loading…
↗
9
6E5819500000
Relay assembly
Loading…
↗
10
6E58195A0000
Relay assembly
Loading…
↗
11
6G5871491000
Connector
Loading…
↗
12
6G5821190000
Cover, lead wire
Loading…
↗
13
6E5821160000
Wire, minus lead
Loading…
↗
14
6E5819482200
Bracket
Loading…
↗
15
970950601600
Bolt, hexagon deep recess
Loading…
↗
17
6N7835570000
Tube
Loading…
↗
18
9046513M3900
Clamp(6e8)
Loading…
↗
19
6N7861100000
Solenoid
Loading…
↗
20
6N7861160000
Wire, pull
Loading…
↗
21
916093001000
Pin, spring (663)
Loading…
↗
22
970950603000
Bolt(jf7)
Loading…
↗
24
6N7861120000
Stay, solenoid
Loading…
↗
25
932100326100
O-ring (663)
Loading…
↗
26
688825601000
Thermo switch assembly
Loading…
↗
27
9046508M3300
Clamp(6t4)
Loading…
↗
28
9046510M1400
Clamp
Loading…
↗
29
6N7825901400
Wire Harness assembly
Loading…
↗
30
682821510000
Fuse
Loading…
↗
31
705821510000
Fuse (30a)
Loading…
↗
32
6G5821520000
Holder, fuse
Loading…
↗
33
6N7821050200
Battery cable
Loading…
↗
34
6E5821170000
Wire, lead
Loading…
↗
35
6R3825190000
Wire, earth lead
Loading…
↗
38
6E5825310000
Wire, lead
Loading…
↗
39
970950601200
Bolt(gh1)
Loading…
↗
42
6R3825630000
Trim & tilt switch assembly
Loading…
↗
43
6E5825870000
Gasket
Loading…
↗
44
6R3836140000
Bracket
Loading…
↗
