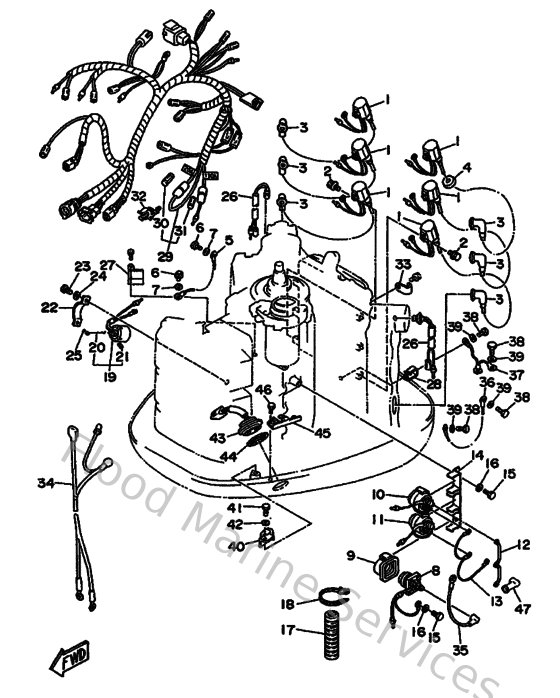

Diagram: Partie Electrique 2

Diagram

Parts List

Reference
Description
Price


1
6R3855700100
Ignition coil assembly
Loading…

↗
2
975950652000
Bolt(7u8)
Loading…

↗
3
6E3823702000
Plug cap assembly
Loading…

↗
4
904802516100
Grommet(656)
Loading…

↗
5
662825190000
Wire, earth lead
Loading…

↗
7
929900660000
Washer, plain (646)
Loading…

↗
8
61A819410000
Starter relay assembly
Loading…

↗
9
689819521000
Holder, starter relay
Loading…

↗
10
6E5819500000
Relay assembly
Loading…

↗
11
6E58195A0000
Relay assembly
Loading…

↗
12
6G5871491000
Connector
Loading…

↗
13
6E5821160000
Wire, minus lead
Loading…

↗
14
6G5819481100
Bracket
Loading…

↗
15
970950601600
Bolt, hexagon deep recess
Loading…

↗
17
6E9835577000
Tube
Loading…

↗
18
9046513M3900
Clamp(6e8)
Loading…

↗
20
6G5861190000
Wire, Pull
Loading…

↗
21
916903001000
Pin, spring (663)
Loading…

↗
25
932100326100
O-ring (663)
Loading…

↗
26
688825601000
Thermo switch assembly
Loading…

↗
27
9046508M3300
Clamp(6t4)
Loading…

↗
28
9046510M1400
Clamp
Loading…

↗
29
6R3825901300
Wire Harness Assembly
Loading…

↗
30
682821510000
Fuse
Loading…

↗
31
705821510000
Fuse (30a)
Loading…

↗
32
6G5821520000
Holder, fuse
Loading…

↗
33
904650802800
Clamp (1e6)
Loading…

↗
34
6R3821050800
Wire Harness
Loading…

↗
35
6K7821170000
Wire, lead
Loading…

↗
36
6R3825190000
Wire, earth lead
Loading…

↗
37
6E5825310000
Wire, lead
Loading…

↗
38
970800601200
Bolt(gh1)
Loading…

↗
40
9046512M2500
Clamp (6e5)
Loading…

↗
41
970950601200
Bolt(gh1)
Loading…

↗
43
6R3825630100
Trim & tilt switch assembly
Loading…

↗
44
6E5825870000
Gasket
Loading…

↗
45
6R3836140000
Bracket
Loading…

↗
47
6G5821190000
Cover, lead wire
Loading…

↗
