50DEMTO (1987)
Power Trim & Tilt Assy

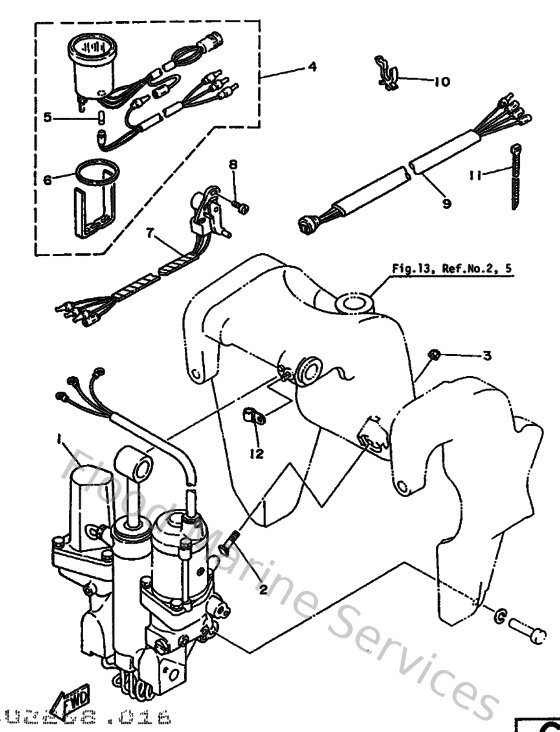

Diagram: Power Trim & Tilt Assy
Parts List
Reference
Description
Price
2
688433760100
Bolt, thrust receiver
Loading…
↗
3
901850805700
Nut, nylon (6j8)
Loading…
↗
4
6Y5836700000
Trim Meter assembly
Loading…
↗
5
3FV835170000
Bulb (12v-1.7w) t6.5
Loading…
↗
6
688836640000
Damper
Loading…
↗
7
6E5836720100
Trim sender
Loading…
↗
8
985800601600
Screw pan head
Loading…
↗
9
6E5825531000
Extension, Wire Harness
Loading…
↗
10
9046415M0800
Clamp (6h1)
Loading…
↗
11
9046511M1000
Clamp
Loading…
↗
12
9046508M0700
Clamp (1e6)
Loading…
↗
1
688438801100
Motor Assembly
Loading…
↗
2
6E5438040000
Stator Assembly
Loading…
↗
3
6E5438910000
Brush
Loading…
↗
5
6E5438050000
Armature Assembly
Loading…
↗
7
6E5438840000
Frame, Commutator End
Loading…
↗
8
6E5438850000
Grommet
Loading…
↗
9
6E5438860000
Bolt
Loading…
↗
10
6E5438870000
Bolt
Loading…
↗
13
697438100200
Piston sub-assembly (tilt)
Loading…
↗
14
6E5438610000
O-ring 1
Loading…
↗
15
6E5438620000
O-ring 2
Loading…
↗
16
6E5438720000
Ring, back-up 2
Loading…
↗
19
6E5438140100
Piston, free
Loading…
↗
20
6E5438290000
Plug, reservoir
Loading…
↗
21
6E5438630000
O-ring
Loading…
↗
22
6E5438180000
Pin, lower shock mount
Loading…
↗
26
6E5438200200
Piston sub assembly
Loading…
↗
27
6E5438640000
O-ring 4
Loading…
↗
28
6E5438740100
Ring, back-up 4
Loading…
↗
29
6E5438210100
Screw, trim cylinder end
Loading…
↗
30
6E5438220100
Seal, trim dust
Loading…
↗
31
6E5438650000
O-ring 5
Loading…
↗
32
6E5438020000
Valve Sub Assembly
Loading…
↗
33
6E5438660000
O-ring
Loading…
↗
34
6E5438670000
O-ring
Loading…
↗
35
6E5438410100
Piston, Shuttle
Loading…
↗
36
6E5438680000
O-Ring
Loading…
↗
37
6E5438690000
O-ring 9
Loading…
↗
38
6E5438330100
Pipe 1
Loading…
↗
39
6E5438340100
Pipe 2
Loading…
↗
40
6E5438350100
Pipe
Loading…
↗
41
6E5438510000
Seat, relief valve
Loading…
↗
42
6E5438440200
Pin, Valve Support
Loading…
↗
43
6E5438580000
Ball 1
Loading…
↗
44
6E5438560000
Spring, down relief
Loading…
↗
45
6E5438830000
O-ring 10
Loading…
↗
46
6E5438430000
Screw, Valve Lock
Loading…
↗
47
6E5438550000
Spring Up Relief
Loading…
↗
48
6E5438590000
Pin, valve support
Loading…
↗
49
6E5438770100
Ball 2
Loading…
↗
50
6E5438950000
Seat, relief valve 2
Loading…
↗
51
6E5438960000
O-ring
Loading…
↗
52
6E5438161000
Filter 1
Loading…
↗
53
6E5438171000
Filter 2
Loading…
↗
55
6E5438970000
O-Ring
Loading…
↗
56
6E5438380000
Pipe, Intake
Loading…
↗
57
6E5438780000
Bolt, Socket
Loading…
↗
58
6E5438880000
Bolt, socket
Loading…
↗
60
6E5438310000
Connector, shaft
Loading…
↗
61
6E5438300000
Gear Pump assembly
Loading…
↗
63
6E5438470000
Seat, manual valve
Loading…
↗
64
6E5438540100
Spring, manual release
Loading…
↗
65
6E54382A0000
Adaptor 1
Loading…
↗
67
6E5438450000
Screw, manual release
Loading…
↗
69
6E5438750000
Ring, snap
Loading…
↗
71
6E54381A0000
Shaft
Loading…
↗
72
6E5438490100
Pin, valve support
Loading…
↗
73
6E5438240100
Spring Down Relief 2
Loading…
↗
75
6E5438420000
Screw, valve seat
Loading…
↗
