F20AM (1999)
Power Trim & Tilt Assy

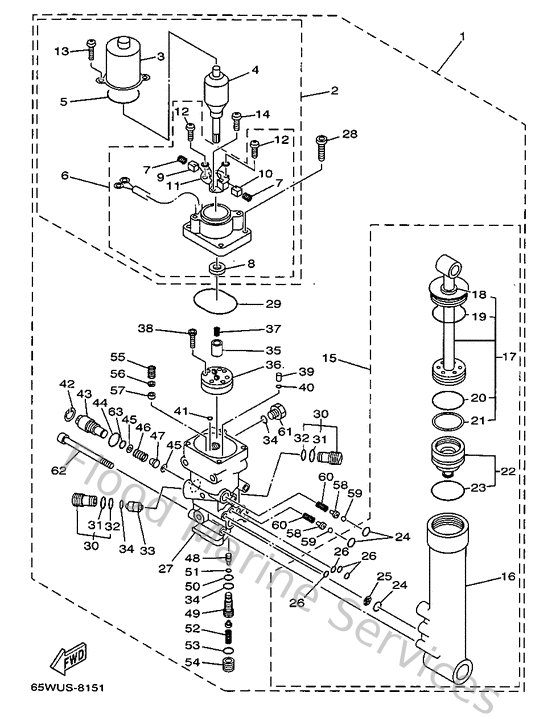

Diagram: Power Trim & Tilt Assy
Parts List
Reference
Description
Price
1
65W43800014D
Power trim & tilt assembly
Loading…
↗
2
65W438800000
Motor assembly (hitachi)
Loading…
↗
3
65W438040000
Stator assembly
Loading…
↗
4
65W438050000
Armature assembly
Loading…
↗
5
65W438690000
O-ring
Loading…
↗
6
65W438810000
Frame, End
Loading…
↗
7
65W4386K0000
Spring, brush
Loading…
↗
8
65W438820000
Oil seal
Loading…
↗
9
65W438920000
Brush 2
Loading…
↗
10
65W438910000
Brush 1
Loading…
↗
11
65W4380F0000
Plate, brush holder
Loading…
↗
12
65W438790000
Screw, with washer
Loading…
↗
13
65W438870000
Bolt, screw
Loading…
↗
14
65W4388E0000
Bolt
Loading…
↗
15
65W438400000
Power tilt assembly
Loading…
↗
16
65W4380K0000
Cylinder, tilt sub assembly
Loading…
↗
18
65W438120000
Seal, dust
Loading…
↗
19
65W438650000
O-ring
Loading…
↗
20
6H1438611000
O-ring
Loading…
↗
21
65W438710000
Ring, back up
Loading…
↗
22
65W4381B0000
Free piston sub assembly
Loading…
↗
24
932101136800
O-ring (2h7)
Loading…
↗
25
6H1438160000
Filter 1
Loading…
↗
26
93210064A500
O-ring(61a)
Loading…
↗
27
65W4380L0000
Housing, trim & tilt sub assembly
Loading…
↗
28
901100611400
Bolt, hexagon socket head(1jk)
Loading…
↗
29
932105076800
O-ring
Loading…
↗
30
6T4438020300
Valve sub assembly
Loading…
↗
31
6H1438660000
O-ring
Loading…
↗
32
6H1438670000
O-ring
Loading…
↗
33
62X438410000
Piston, shuttle
Loading…
↗
34
932100935000
O-ring
Loading…
↗
35
65W438310000
Connector, shaft
Loading…
↗
36
65W438300000
Gear pump assembly
Loading…
↗
37
6T4438530000
Spring, main valve
Loading…
↗
38
913170402500
Bolt,socket
Loading…
↗
39
65W438170000
Filter 2
Loading…
↗
40
65W438610000
O-ring
Loading…
↗
41
9321004N5100
O-ring
Loading…
↗
42
6H1438750000
Ring, snap
Loading…
↗
43
6H1438450000
Screw, manual release
Loading…
↗
44
932101839700
O-ring (6g5)
Loading…
↗
45
6H1438470000
Seat, manual valve
Loading…
↗
46
65W438540000
Spring, manual release
Loading…
↗
47
65W4382A0000
Adaptor 1
Loading…
↗
48
65W438440000
Pin, valve support
Loading…
↗
49
65W438510000
Seat, relief valve
Loading…
↗
50
932100800600
O-ring
Loading…
↗
51
932100347800
O-ring(31m)
Loading…
↗
52
65W438550000
Spring, up relief
Loading…
↗
53
932101107300
O-ring (p95)
Loading…
↗
54
65W438430000
Screw, valve lock
Loading…
↗
55
6H1438561000
Spring, down relief
Loading…
↗
56
6H1438441000
Pin, valve support
Loading…
↗
57
6H14384F1000
Seal, main valve
Loading…
↗
58
65W4386A0000
Pin, absorber valve
Loading…
↗
59
935010800100
Ball
Loading…
↗
60
65W438530000
Spring, absorber valve
Loading…
↗
61
6H1438290000
Plug, reservoir
Loading…
↗
62
62X438780000
Bolt, socket
Loading…
↗
63
9321010M7400
O-ring
Loading…
↗
