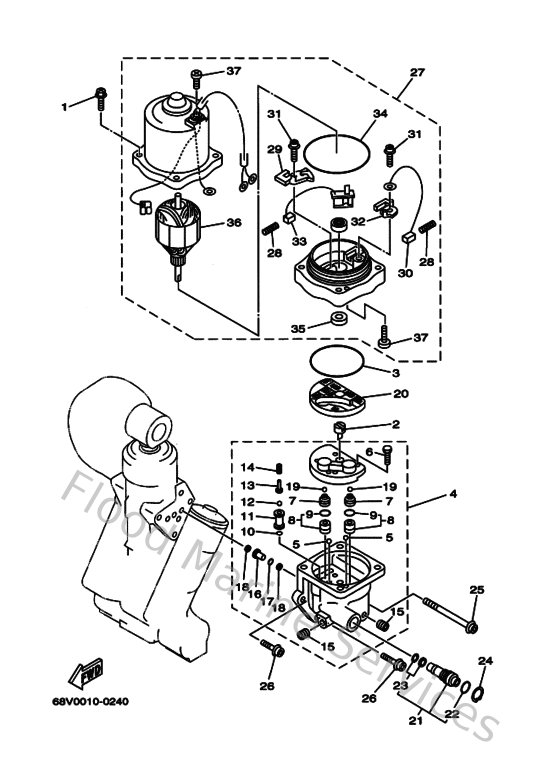

Diagram: Power Trim & Tilt Assy 2

Diagram

Parts List

Reference
Description
Price


1
64E4388E1000
Bolt ,screw (l:34.7mm)
Loading…

↗
2
64E438310000
Connector, shaft
Loading…

↗
3
64E438680000
O-ring 8
Loading…

↗
4
64E438300000
Gear pump assembly
Loading…

↗
5
72X438580000
Ball
Loading…

↗
6
64E438430000
Screw, valve lock
Loading…

↗
7
64E438410000
Piston, shuttle
Loading…

↗
8
64E438020000
Valve sub assembly
Loading…

↗
9
6E5438960000
O-ring
Loading…

↗
10
6G5438630000
O-ring 3
Loading…

↗
11
64E438510000
Seat, Relief Valve
Loading…

↗
12
64E438580000
Ball
Loading…

↗
13
64E438590000
Pin, Valve Support
Loading…

↗
14
64E438550000
Spring, up relief
Loading…

↗
15
6E5438260100
Plug, taper screw
Loading…

↗
16
64E438500000
Valve sub assembly
Loading…

↗
17
6E5438830000
O-ring 10
Loading…

↗
18
64E438160000
Filter 1
Loading…

↗
20
64E438171000
Filter 2
Loading…

↗
21
64E438600100
Manual valve sub-assembly
Loading…

↗
22
72X85075L000
O-ring (nsd161)
Loading…

↗
23
64E438270000
Ring set
Loading…

↗
24
64E438750000
Ring, snap
Loading…

↗
25
64E438791100
Screw, with washer
Loading…

↗
26
64E438790000
Screw, with washer
Loading…

↗
27
67H438800000
Motor assembly
Loading…

↗
28
6H14386K1000
Spring, brush
Loading…

↗
29
64E4380J0000
Holder Brush
Loading…

↗
30
64E438910000
Brush 1
Loading…

↗
31
985070401000
Screw, pan head(6g8)
Loading…

↗
32
64E4380F0000
Holder, brush 2
Loading…

↗
33
64E438920000
Breaker comp. (brush 2)
Loading…

↗
34
6G5438650100
O-ring
Loading…

↗
35
9310208M4300
Oil seal(6b0)
Loading…

↗
36
64E438050000
Armature assembly
Loading…

↗
37
64E438431000
Screw valve lock
