Yamaha Outboard Parts - Puissance Pare Et Incliner, En - P100ETO (1997) | Flood Marine

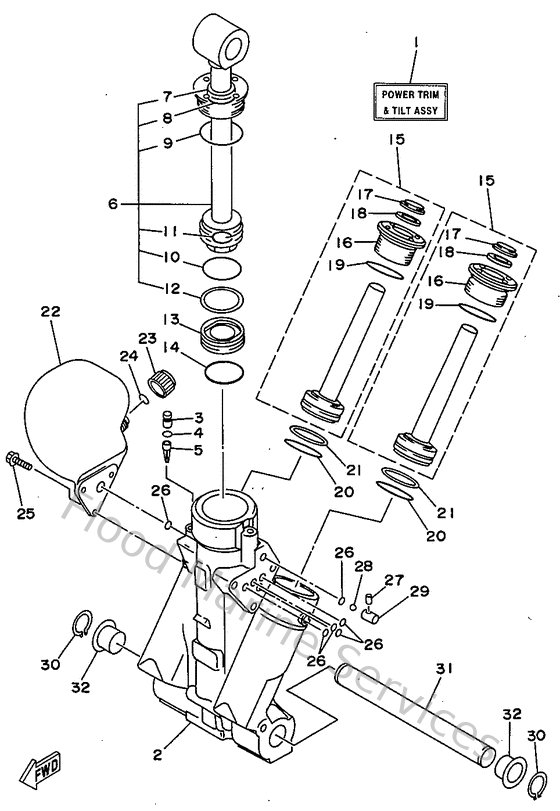

Diagram: Puissance Pare Et Incliner, En

Diagram

Parts List

Reference
Description
Price


1
64E43800004D
Power trim & tilt assembly
Loading…

↗
2
64E438250000
Housing Trim & Tilt
Loading…

↗
3
6AW4388J0000
Plug 2
Loading…

↗
4
9321010M7400
O-ring
Loading…

↗
5
64E438170000
Filter 2
Loading…

↗
6
64E438100000
Tilt piston sub assembly
Loading…

↗
7
64E438980000
Seal, dust 2
Loading…

↗
8
64E438670000
O-ring 7
Loading…

↗
9
64E438660000
O-ring 6
Loading…

↗
10
6E5438620000
O-ring 2
Loading…

↗
11
64E438830000
O-ring 10
Loading…

↗
12
6E5438720000
Ring, back-up 2
Loading…

↗
13
6E5438140200
Piston, free
Loading…

↗
15
64E438200000
Trim piston sub assembly
Loading…

↗
16
64E438210800
Screw, trim cylinder end
Loading…

↗
17
64E438220000
Seal, trim dust
Loading…

↗
18
64E4384J0000
Seal, trim down
Loading…

↗
19
6G5438640000
O-ring 4
Loading…

↗
20
6E5438640000
O-ring 4
Loading…

↗
21
6E5438740100
Ring, back-up 4
Loading…

↗
22
64E438280100
Body, reservoir
Loading…

↗
23
64E438290000
Plug, reservoir
Loading…

↗
24
64E438970000
O-ring
Loading…

↗
25
64E4388E0100
Bolt ,screw (l:14mm)
Loading…

↗
26
64E438690000
O-ring 9
Loading…

↗
27
64E4381G0000
Pin 1
Loading…

↗
28
6E5438580000
Ball 1
Loading…

↗
29
64E4382G0000
Valve seat
Loading…

↗
30
9341022M1100
Circlip(61u)
Loading…

↗
31
64E438180000
Lower shock mount pin set
Loading…

↗
32
9038622M9800
Bush(61u)
Loading…

↗
