Yamaha Outboard Parts - REPAIR KIT 1 - VZ150TRC (2004) | Flood Marine

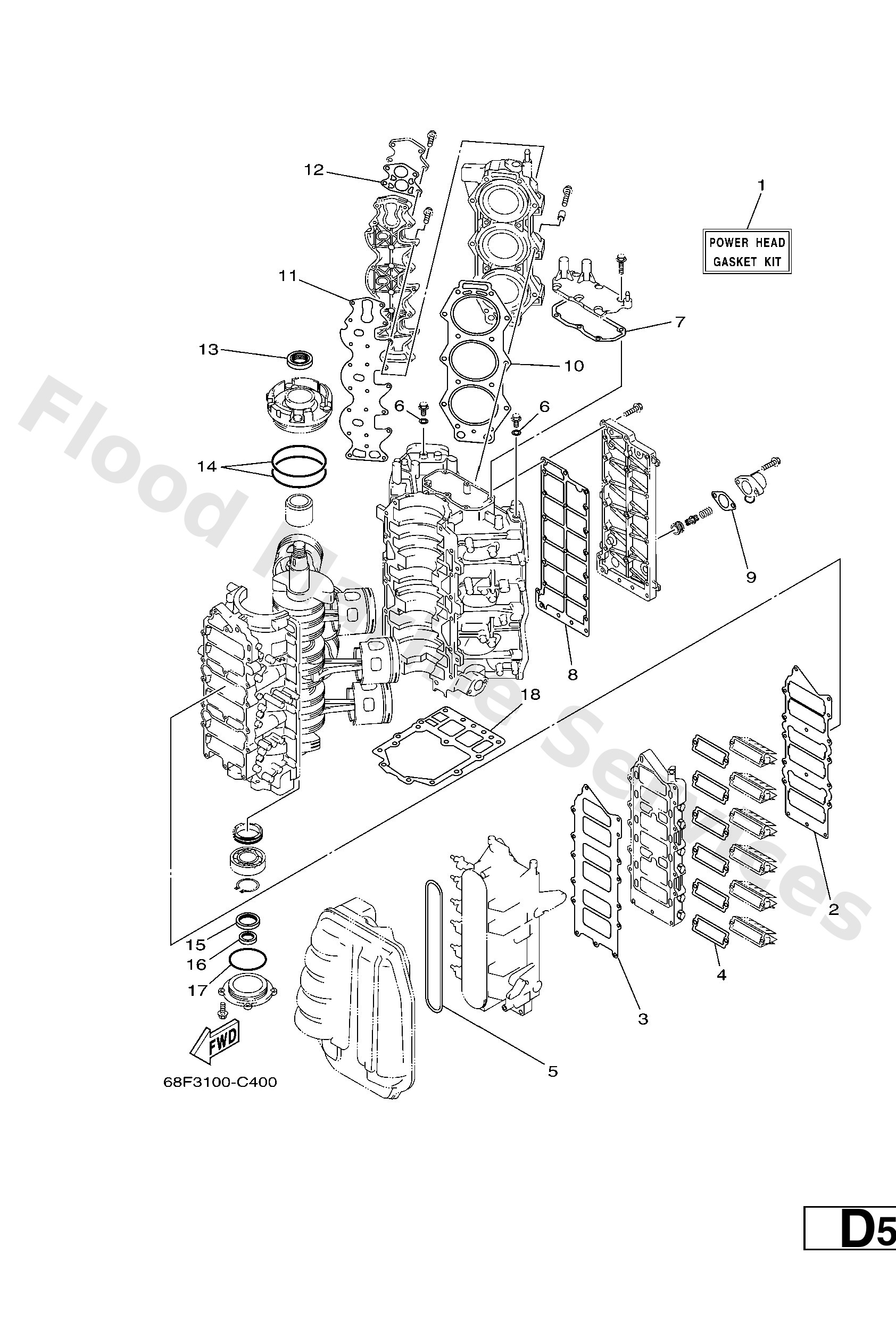

Diagram: REPAIR KIT 1

Diagram

Parts List

Reference
Description
Price


1
68FW000101
Power head gasket kit
Loading…

↗
2
65L1364500
Gasket, manifold 1
Loading…

↗
3
65L1364600
Gasket, manifold 2
Loading…

↗
4
61A13621A0
Gasket, valve seat
Loading…

↗
5
60V1447600
Seal
Loading…

↗
6
9043014115
Gasket (663)
Loading…

↗
7
68F1138100
Gasket 1
Loading…

↗
8
68F4111400
Gasket, exhaust outer cover
Loading…

↗
9
6G511382A1
Gasket 2
Loading…

↗
10
68F1118100
Gasket, cylinder head 1
Loading…

↗
11
68F1119301
Gasket, head cover 1
Loading…

↗
12
68812414A1
Gasket, cover
Loading…

↗
13
9310240M14
Oil seal(61a)
Loading…

↗
14
9321104001
O-ring
Loading…

↗
15
9310235M61
Oil seal
Loading…

↗
16
9310122M15
Oil seal (6e5)
Loading…

↗
17
9321074M35
O-ring (6e5)
Loading…

↗
18
68F4511300
Gasket, upper casing
Loading…

↗
