Yamaha Outboard Parts - Remo Con Attachment - E40XMH (1999) | Flood Marine

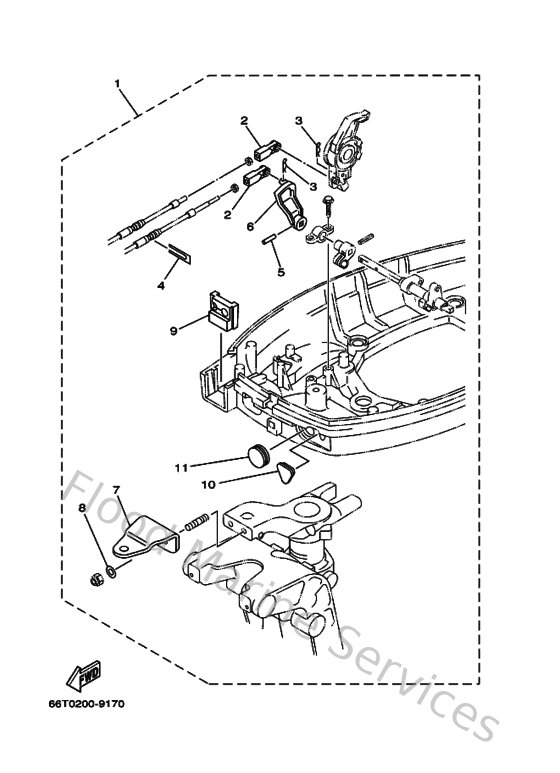

Diagram: Remo Con Attachment

Diagram

Parts List

Reference
Description
Price


1
66T485010000
Remote cont. attachment assembly.
Loading…

↗
2
663483440000
Cable end, remote control
Loading…

↗
3
904681800800
Clip 620436610000
Loading…

↗
4
6H3485380000
Clamp, cable
Loading…

↗
5
916903031800
Pin, spring (6h3)
Loading…

↗
6
66T441250100
Lever, shift rod
Loading…

↗
7
65W485110000
Hook, steering
Loading…

↗
8
902011012000
Washer, plate
Loading…

↗
9
66T427253000
Grommet
Loading…

↗
10
65W263261000
Grommet
Loading…

↗
11
65W427261000
Grommet
Loading…

↗
