140AETOL (1996)
Repair Kit

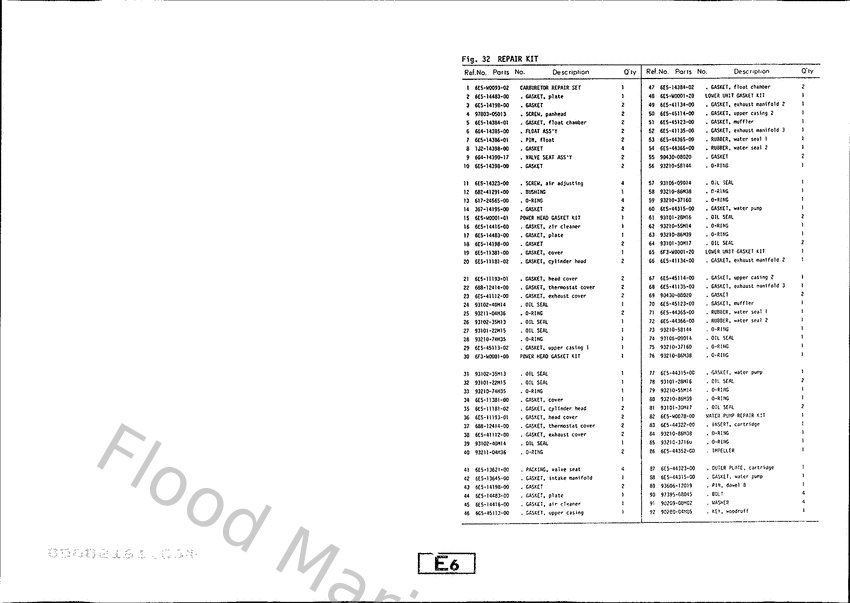

Diagram: Repair Kit
Parts List
Reference
Description
Price
1
6E5W00930200
Carburetor repair set
Loading…
↗
2
6E5144830000
Gasket
Loading…
↗
3
6E5141980000
Gasket
Loading…
↗
4
978030501300
Screw, Pan Head
Loading…
↗
7
6E5143860100
Pin, float
Loading…
↗
8
1J2143980000
Packing
Loading…
↗
9
6G4143901700
Valve Seat Assembly
Loading…
↗
10
6E5143980000
Gasket
Loading…
↗
11
6E5143230000
Screw, Air Adjusting
Loading…
↗
12
682412910000
Bushing
Loading…
↗
14
367141950000
Washer, valve seat
Loading…
↗
15
6E5W0001A100
Gasket Kit, Power Unit
Loading…
↗
16
6E5144160000
Gasket, air cleaner
Loading…
↗
18
6E514198A200
Gasket
Loading…
↗
19
6E5113810000
Gasket 1
Loading…
↗
20
6E511181A200
Gasket, cylinder head 1
Loading…
↗
21
6E5111930100
Gasket, head cover 1
Loading…
↗
22
688124140000
Gasket, cover
Loading…
↗
23
6E5411120000
Gasket, exhaust inner cover
Loading…
↗
24
9310240M3800
Oil seal(61a)
Loading…
↗
25
9321104M3600
O-ring (705)
Loading…
↗
26
9310235M1300
Oil seal (6e5)
Loading…
↗
27
9310122M1500
Oil seal (6e5)
Loading…
↗
28
9321074M3500
O-ring (6e5)
Loading…
↗
29
6E5451130200
Gasket, upper casing
Loading…
↗
35
6E5111810200
Gasket, cylinder head 1
Loading…
↗
37
68812414A100
Gasket, cover
Loading…
↗
39
9310240M1400
Oil seal(61a)
Loading…
↗
40
932110438400
O-ring (705)
Loading…
↗
41
6E5136210000
Gasket, valve seat
Loading…
↗
42
6E513645A100
Gasket, manifold 1
Loading…
↗
46
6G545113A200
Gasket, upper casing
Loading…
↗
47
6E5143840200
Gasket, float chamber
Loading…
↗
48
6E5W00012000
Gasket kit, lower unit
Loading…
↗
49
6E5411340000
Gasket,exhaust manifold
Loading…
↗
50
6E5451140000
Gasket, upper casing
Loading…
↗
51
6E5451230000
Gasket, muffler
Loading…
↗
52
6E5411350000
Gasket, exhaust manifold
Loading…
↗
53
6E5443650000
Damper, water seal 1
Loading…
↗
54
6E5443660000
Damper, water seal 2
Loading…
↗
55
904300802000
Gasket
Loading…
↗
56
932105814400
O-ring(47x)
Loading…
↗
57
931060901400
Oil seal
Loading…
↗
58
9321086M3800
O-ring (6e5)
Loading…
↗
59
932103716000
O-ring (6g8)
Loading…
↗
60
6E5443150000
Gasket,water pump
Loading…
↗
61
9310128M1600
Oil seal (6e5)
Loading…
↗
62
9321055M1400
O-ring (70e)
Loading…
↗
63
9321086M3900
O-ring (6e5)
Loading…
↗
64
9310130M1700
Oil seal (6e5)
Loading…
↗
65
6F3W00012000
Gasket kit, lower unit
Loading…
↗
68
6E541135A000
Gasket, exhaust manifold
Loading…
↗
75
9321037M6700
O-ring (6g8)
Loading…
↗
82
6E5W00780000
Water pump repair kit
Loading…
↗
83
6E5443220000
Insert, cartridge
Loading…
↗
86
6E5443520000
Impeller
Loading…
↗
87
6E5443230000
Outer plate, cartridge
Loading…
↗
89
936061201900
Pin, dowel (614)
Loading…
↗
90
973950804500
Bolt, hexagon
Loading…
↗
91
9020908M0200
Washer, plate (688)
Loading…
↗
92
9028004M0500
Key, woodruff (6e5)
Loading…
↗
