2BMH (1987)
Repair Kit

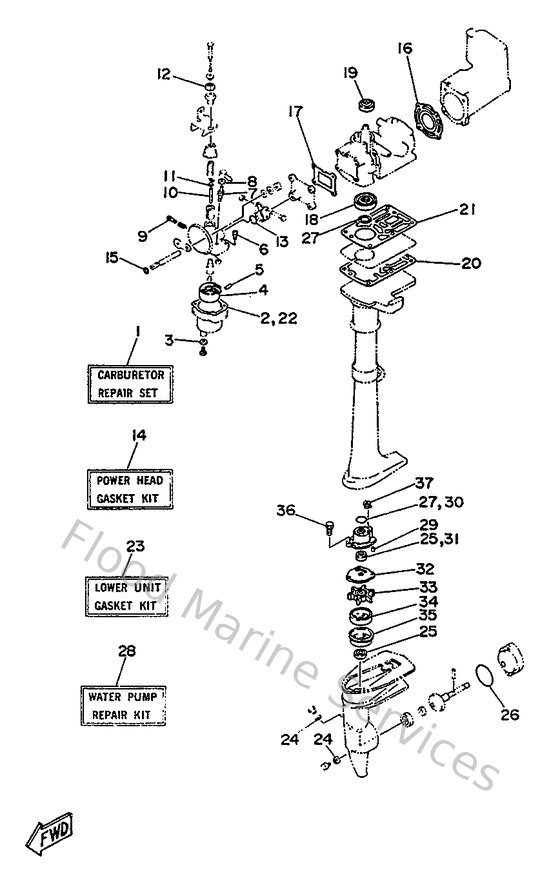

Diagram: Repair Kit
Parts List
Reference
Description
Price
1
6A1W00930100
Carburetor Repair Kit
Loading…
↗
2
646143840000
Gasket, float chamber
Loading…
↗
3
6A1143980000
Gasket
Loading…
↗
5
646143860000
Pin, float
Loading…
↗
6
985800401000
Screw, pan head (e56)
Loading…
↗
7
6A1143900000
Needle Valve Assembly
Loading…
↗
9
646142110200
Screw, pilot adjusting
Loading…
↗
10
6A1141160000
Needle
Loading…
↗
11
646141370000
Clip
Loading…
↗
13
646142290100
O-ring
Loading…
↗
14
6A1W00010000
Gasket kit, power unit
Loading…
↗
15
9321008M2900
O-ring (6a1)
Loading…
↗
16
646111810100
Gasket, cylinder head 1
Loading…
↗
17
6GDE36210000
Gasket, valve seat
Loading…
↗
18
931022007000
Oil seal
Loading…
↗
19
9310215M3200
Oil seal(6a1)
Loading…
↗
20
646146230100
Gasket, exhaust
Loading…
↗
21
6A1146130100
Gasket,exhaust 1
Loading…
↗
22
652143840000
Gasket, float chamber
Loading…
↗
24
904300802000
Gasket
Loading…
↗
25
931031105100
Oil seal (11x21x8-646)
Loading…
↗
26
932104210100
O-ring (183)
Loading…
↗
27
932101912300
O-ring (646)
Loading…
↗
28
6A1W00780100
Water pump repair kit
Loading…
↗
29
936040906800
Pin,dowel (646)
Loading…
↗
32
646443230000
Outer plate,cartridge
Loading…
↗
33
646443520100
Impeller
Loading…
↗
34
646443220000
Insert, cartridge
Loading…
↗
35
6GDG43250000
Protector, oil seal
Loading…
↗
36
973900501600
Bolt, with washer
Loading…
↗
37
646443660100
Damper, water seal 2
Loading…
↗
