15DWH (1987)
Repair Kit 1

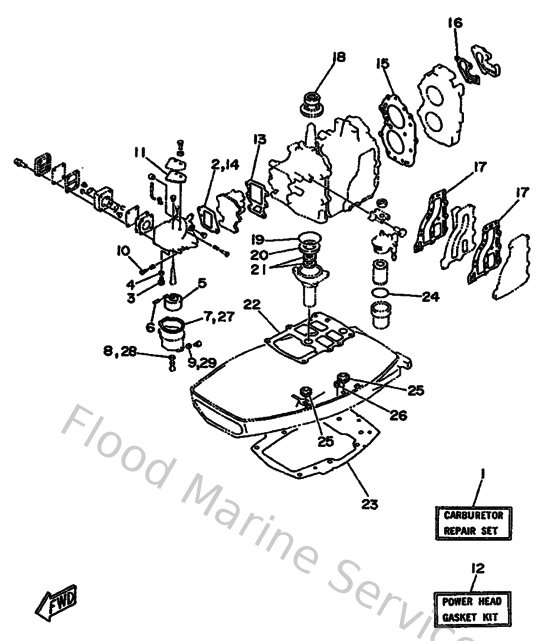

Diagram: Repair Kit 1
Parts List
Reference
Description
Price
1
677W00930100
Carburetor repair set
Loading…
↗
2
677141980000
Gasket
Loading…
↗
3
6E8143901200
Needle valve assembly
Loading…
↗
4
367141950000
Washer, valve seat
Loading…
↗
5
6E7143850000
Float
Loading…
↗
6
647143860000
Pin, float
Loading…
↗
7
677143840100
Gasket, float chamber
Loading…
↗
8
1J2143980000
Packing
Loading…
↗
9
655143980000
Gasket
Loading…
↗
10
648143210000
Screw, pan head(ga5)
Loading…
↗
11
6E7142270000
Packing
Loading…
↗
12
682W0001A300
Gasket kit
Loading…
↗
13
682136210000
Gasket, valve seat
Loading…
↗
14
67714198A100
Gasket
Loading…
↗
15
682111810100
Gasket, cylinder head 1
Loading…
↗
16
682124140000
Gasket, cover
Loading…
↗
17
68241112A100
Gasket, exhaust inner cover
Loading…
↗
18
9311023M0000
Oil seal (682)
Loading…
↗
20
9310120M1000
Oil seal (682)
Loading…
↗
21
9310113M1100
Oil seal (682)
Loading…
↗
22
68211351A000
Gasket, cylinder
Loading…
↗
23
682451130200
Gasket, upper casing
Loading…
↗
24
9321037M2500
O-ring (655)
Loading…
↗
25
682443670000
Rubber water seal 3
Loading…
↗
26
682443660000
Water seal 2
Loading…
↗
