15DWH (1993)
Repair Kit 1

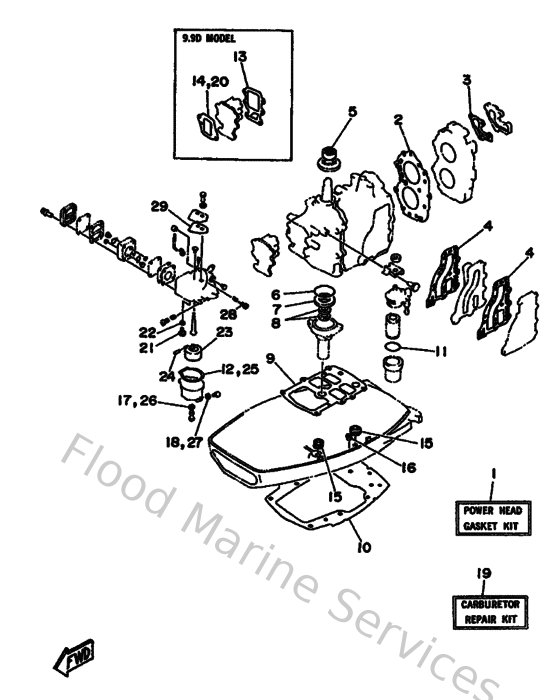

Diagram: Repair Kit 1
Parts List
Reference
Description
Price
1
6E7W00010100
Gasket Kit
Loading…
↗
2
6E711181A000
Gasket, cylinder head 1
Loading…
↗
3
68212414A100
Gasket, cover
Loading…
↗
4
68241112A100
Gasket, exhaust inner cover
Loading…
↗
5
9311023M0000
Oil seal (682)
Loading…
↗
6
932105367900
O-ring(50m)
Loading…
↗
7
9310120M3400
Oil seal(6j1)
Loading…
↗
8
9310113M1100
Oil seal (682)
Loading…
↗
9
68211351A000
Gasket, cylinder
Loading…
↗
10
682451130200
Gasket, upper casing
Loading…
↗
11
9321037M2500
O-ring (655)
Loading…
↗
12
677143840100
Gasket, float chamber
Loading…
↗
13
68213621A000
Gasket, valve seat
Loading…
↗
14
677141980000
Gasket
Loading…
↗
15
682443670000
Rubber water seal 3
Loading…
↗
16
682443660000
Water seal 2
Loading…
↗
17
1J2143980000
Packing
Loading…
↗
18
655143980000
Gasket
Loading…
↗
19
6E7W00930300
Carburetor repair set
Loading…
↗
20
67714198A100
Gasket
Loading…
↗
21
6E8143901200
Needle valve assembly
Loading…
↗
22
367141950000
Washer, valve seat
Loading…
↗
23
6E7143850000
Float
Loading…
↗
24
647143861000
Pin, float
Loading…
↗
28
647143230000
Screw, air adjusting
Loading…
↗
39
6E7142270000
Packing
Loading…
↗
