Yamaha Outboard Parts - Repair Kit 1 - 55BM (1992) | Flood Marine

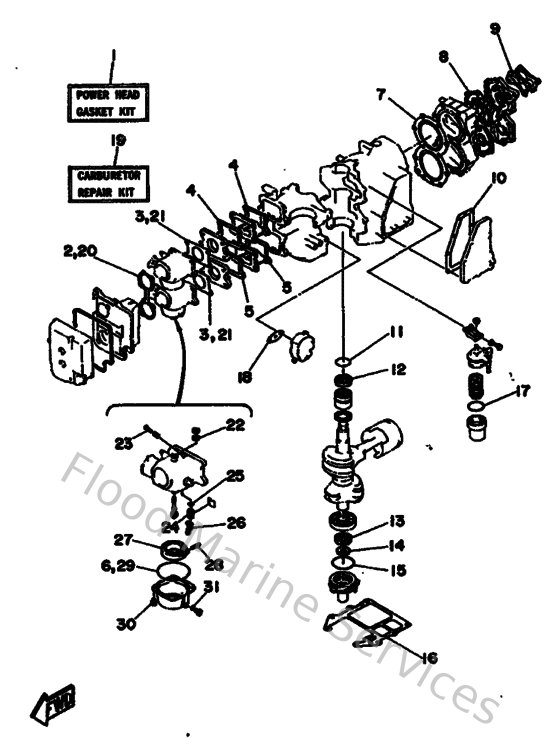

Diagram: Repair Kit 1

Diagram

Parts List

Reference
Description
Price


1
697W00010100
Gasket Kitgasket Kit
Loading…

↗
2
66314483A000
Gasket, plate
Loading…

↗
3
66314198A000
Gasket
Loading…

↗
4
66313621A000
Packing, valve seat 1
Loading…

↗
5
66313622A000
Packing, valve seat 2
Loading…

↗
6
932106427200
O-ring (663) (carb)
Loading…

↗
7
69711181A000
Gasket, cylinder head 1
Loading…

↗
8
66311193A000
Gasket, head cover
Loading…

↗
9
66312414A000
Gasket, thermostat
Loading…

↗
10
66341114A000
Gasket, exhaust outer cover
Loading…

↗
11
932104215900
O-ring (647)
Loading…

↗
12
9310232M0700
Oil seal (697)
Loading…

↗
13
931022813500
Oil seal (28x47x7-663)
Loading…

↗
14
931041804900
Oil seal (18x30x5-663)
Loading…

↗
15
932106226900
Ring, o(663)
Loading…

↗
16
69645113A000
Gasket,upper casing
Loading…

↗
18
65024431A000
Gasket,fuel pump
Loading…

↗
19
696W00930200
Carburetor repair kit
Loading…

↗
22
679145570000
Washer (carb)
Loading…

↗
23
663149230000
Screw, adjust
Loading…

↗
24
696145900000
Needle valve assembly
Loading…

↗
25
932100722900
O-ring (371)
Loading…

↗
26
676141860000
Pin, valve
Loading…

↗
27
6F0149850000
Float comp.
Loading…

↗
28
663145480000
Pin, arm
Loading…

↗
30
901590400700
Screw, pan head (686)
Loading…

↗
31
932100423000
O-ring (371)
Loading…

↗
