F20AM (1999)
Repair Kit 1

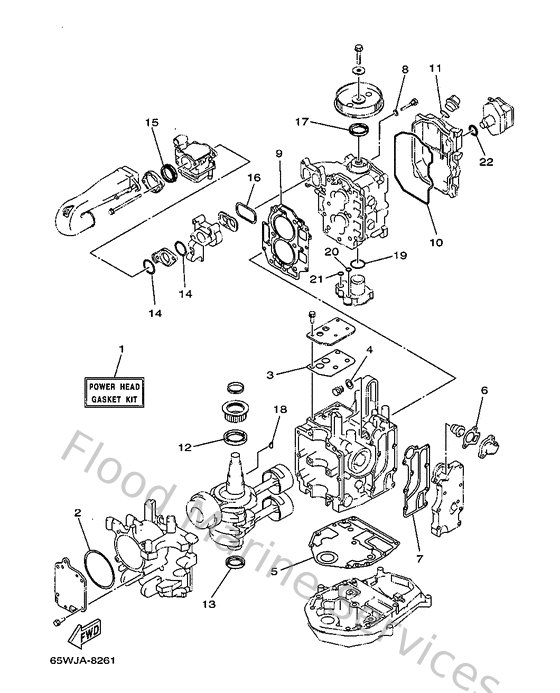

Diagram: Repair Kit 1
Parts List
Reference
Description
Price
1
65WW00010000
Power Head Gasket Kit
Loading…
↗
2
65W156630000
Seal
Loading…
↗
3
65W111690000
Gasket, breather cover
Loading…
↗
4
904301411500
Gasket (663)
Loading…
↗
5
65W113510000
Gasket, cylinder
Loading…
↗
6
62Y124140000
Gasket, cover
Loading…
↗
7
65W411140000
Gasket, exhaust outer cover
Loading…
↗
8
904300601400
Gasket 256113960000
Loading…
↗
9
65W111811000
Gasket, cylinder head 1
Loading…
↗
10
65W113560000
Seal, cylinder 2
Loading…
↗
11
932102480000
O-ring
Loading…
↗
12
9310243M4200
Oil seal(62y)
Loading…
↗
13
9310235M4700
Oil seal(62y)
Loading…
↗
14
65W141980000
Gasket
Loading…
↗
15
65W144571000
Seal
Loading…
↗
16
65W136450000
Gasket, manifold 1
Loading…
↗
17
9310237M4000
Oil seal(62y)
Loading…
↗
18
9028004M0600
Key, woodruff(6a1)
Loading…
↗
19
9321033MH200
O-ring(62y)
Loading…
↗
20
9321012MG900
O-ring(62y)
Loading…
↗
21
932101451500
O-ring (11h)
Loading…
↗
22
9321024M7900
O-ring
Loading…
↗
