L200JETOL (2001)
Repair Kit 1

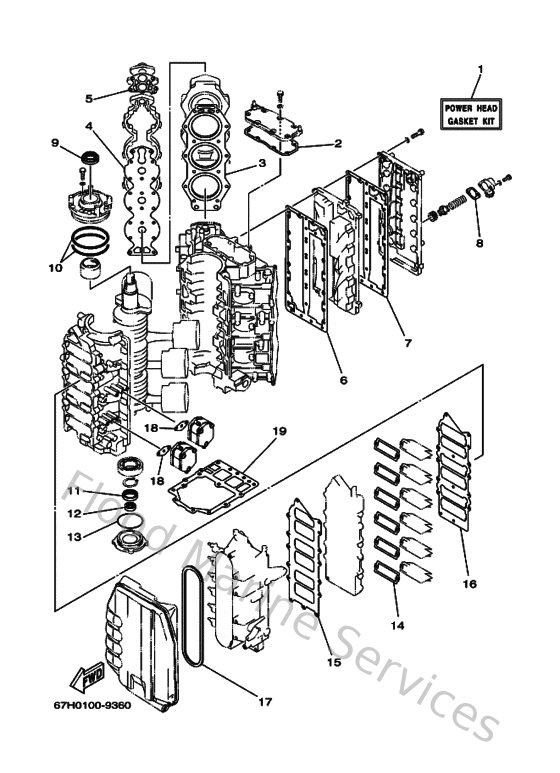

Diagram: Repair Kit 1
Parts List
Reference
Description
Price
1
67HW00010000
Power Head Gasket Kit
Loading…
↗
2
6E511381A200
Gasket 1
Loading…
↗
3
6G511181A100
Gasket, cylinder head 1
Loading…
↗
4
6G511193A200
Gasket, head cover 1
Loading…
↗
5
68812414A100
Gasket, cover
Loading…
↗
6
6G541112A100
Gasket, exhaust inner cover
Loading…
↗
8
6G511382A100
Gasket 2
Loading…
↗
9
9310240M3800
Oil seal(61a)
Loading…
↗
10
932110400100
O-ring
Loading…
↗
11
9310235M1300
Oil seal (6e5)
Loading…
↗
12
9310122M1500
Oil seal (6e5)
Loading…
↗
13
9321074M3500
O-ring (6e5)
Loading…
↗
14
61A13621A000
Gasket, valve seat
Loading…
↗
15
65L136460000
Gasket, manifold 2
Loading…
↗
16
65L136450000
Gasket, manifold 1
Loading…
↗
17
65L144830000
Gasket
Loading…
↗
18
65024431A000
Gasket,fuel pump
Loading…
↗
19
6G545113A100
Gasket, upper casing
Loading…
↗
