F45A (1997)
Repair Kit 2

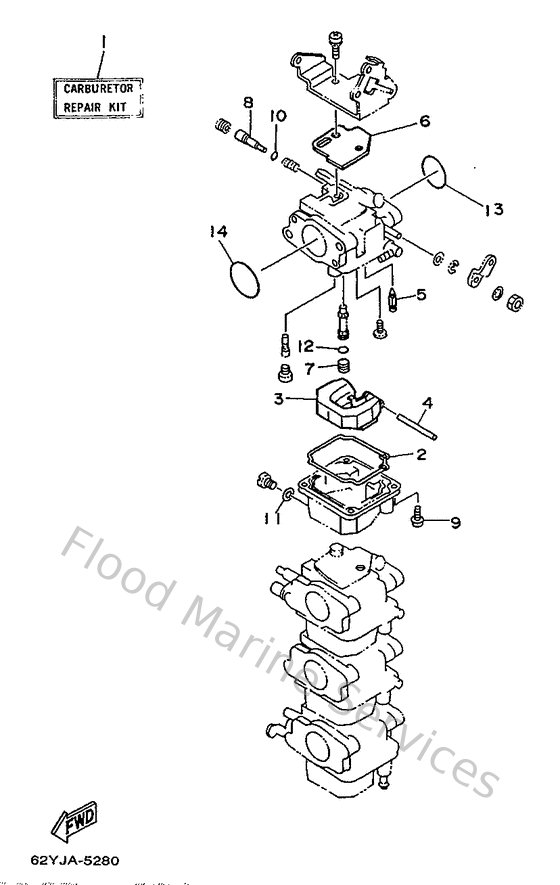

Diagram: Repair Kit 2
Parts List
Reference
Description
Price
1
62YW00930000
Carburetor repair kit
Loading…
↗
2
6L2143840000
Gasket, float chamber
Loading…
↗
3
6L2143850000
Float
Loading…
↗
5
6L2143920000
Valve, needle
Loading…
↗
6
62Y143990000
Gasket
Loading…
↗
7
62Y143550000
Plug
Loading…
↗
8
12V141050000
Pilot screw set
Loading…
↗
9
985800401200
Screw, pan head (686)
Loading…
↗
10
5H0143970000
O-ring
Loading…
↗
11
62Y143980000
Gasket
Loading…
↗
12
6F5143970000
O-ring
Loading…
↗
13
9321030MH400
O-ring(62y)
Loading…
↗
14
9321035M8600
O-ring(6l2)
Loading…
↗
