Yamaha Outboard Parts - Repair Kit 2 - F6AMH (2001) | Flood Marine

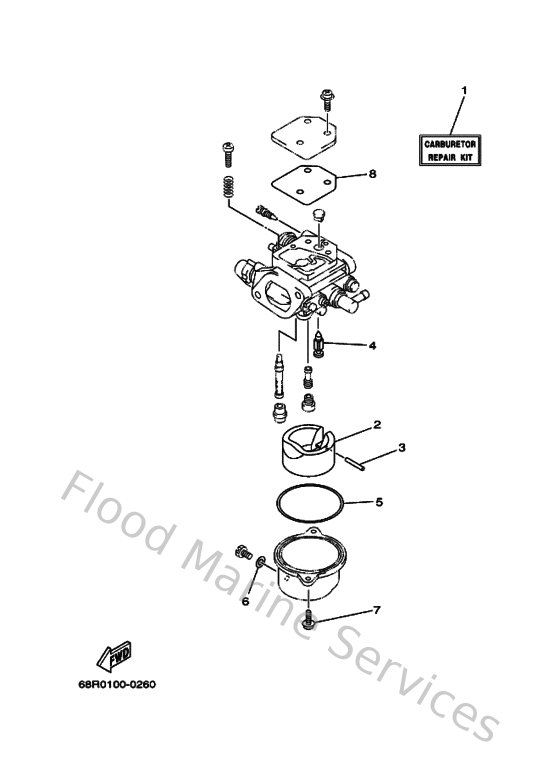

Diagram: Repair Kit 2

Diagram

Parts List

Reference

Description

Price

1

68TW00930000

Carburetor repair kit

Loading…

2

68T143850000

Loading…

3

67D143860000

Loading…

4

68T145460000

Loading…

5

67D149840000

Gasket, float chamber

Loading…

6

6J8149950000

Gasket, drin screw

Loading…

7

979800411200

Screw, pan head (686)

Loading…

8

67D145360000

Loading…
