Yamaha Outboard Parts - Repair Kit 3 - F20AM (2000) | Flood Marine

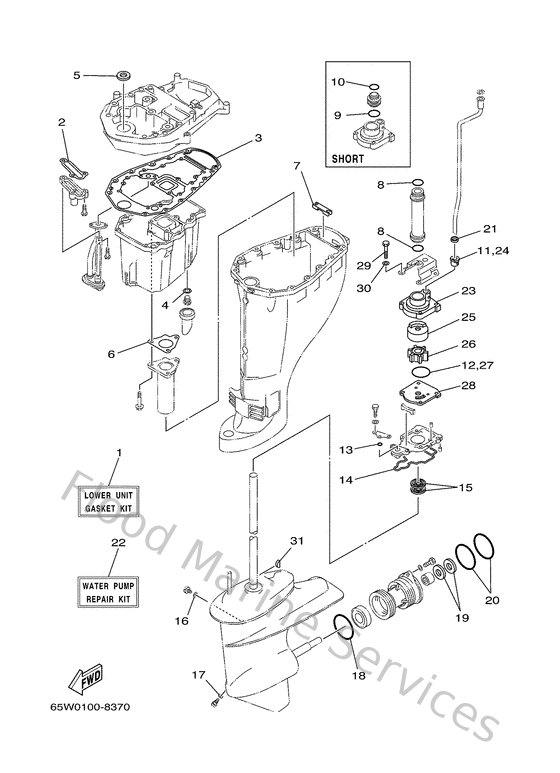

Diagram: Repair Kit 3

Diagram

Parts List

Reference
Description
Price


1
65WW00012000
Lower unit gasket kit
Loading…

↗
2
62Y134750000
Gasket
Loading…

↗
3
62Y153120000
Gasket, oil pan
Loading…

↗
4
9043014M0900
Gasket
Loading…

↗
5
9310116M3600
Oil seal(6a8)
Loading…

↗
6
62Y411330000
Gasket, exhaust manifold 1
Loading…

↗
7
65W451280000
Seal 2
Loading…

↗
8
932102624000
O-ring
Loading…

↗
9
932102613000
O-ring
Loading…

↗
10
932102216400
O-ring
Loading…

↗
11
6L2443670000
Damper, water seal 3
Loading…

↗
12
932104516100
O-ring
Loading…

↗
13
9321006ME600
O-ring
Loading…

↗
14
61N453150000
Packing, lower casing
Loading…

↗
15
931012206700
Oil seal (22x36x6-663)
Loading…

↗
16
904300802000
Gasket
Loading…

↗
17
904300800300
Gasket
Loading…

↗
18
9321064ME700
O-ring
Loading…

↗
19
9310120M0700
Oil seal
Loading…

↗
20
9321065M5000
O-ring
Loading…

↗
21
904301207200
Gasket
Loading…

↗
22
61NW00781100
Water pump repair kit
Loading…

↗
23
61N443110100
Housing, water pump
Loading…

↗
25
61N443220100
Insert, cartridge
Loading…

↗
26
6H4443520200
Impeller
Loading…

↗
28
61N443230000
Outer plate, cartridge
Loading…

↗
29
970950604000
Bolt (682)
Loading…

↗
30
929950660000
Washer, plain (646)
Loading…

↗
31
902800302400
Key, woodruff(662)
Loading…

↗
