F6AMH (2001)
Repair Kit 3

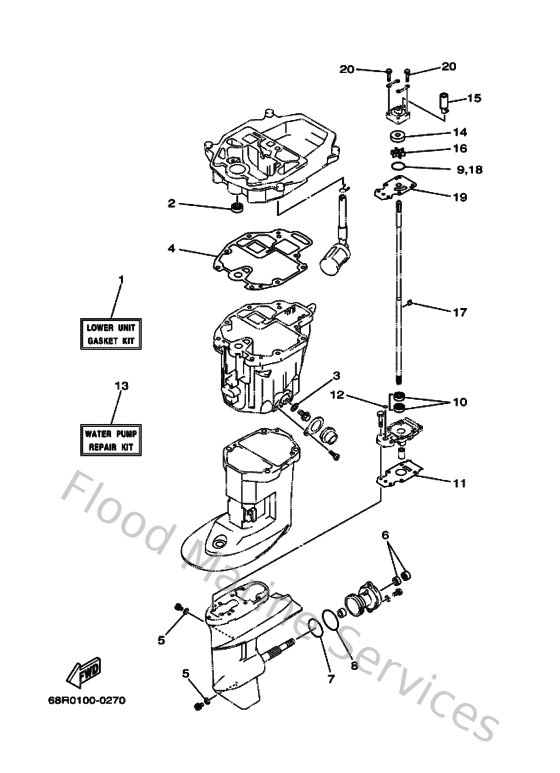

Diagram: Repair Kit 3
Parts List
Reference
Description
Price
1
68TW00012000
Lower unit gasket kit
Loading…
↗
2
9310112M7000
Oil seal
Loading…
↗
3
9043010M1100
Gasket
Loading…
↗
4
68T134750000
Gasket
Loading…
↗
5
904300802000
Gasket
Loading…
↗
6
931011507400
Oil seal (655)
Loading…
↗
7
932104904600
O-ring (620)
Loading…
↗
8
9321053M0800
O-ring(50m)
Loading…
↗
9
932104439800
O-ring(55x)
Loading…
↗
10
9310111M2300
Oil seal (6g1)
Loading…
↗
11
68T45315A000
Packing, lower casing
Loading…
↗
12
9321006ME600
O-ring
Loading…
↗
13
68TW00780000
Water pump repair kit
Loading…
↗
14
63V443220000
Insert, cartridge
Loading…
↗
15
68T443660000
Damper, water seal 2
Loading…
↗
16
68T443520000
Impeller
Loading…
↗
17
664443380000
Key, woodruff
Loading…
↗
19
68T443230000
Outer plate, cartridge
Loading…
↗
20
970800804500
Bolt, hexagon
Loading…
↗
