L250AETO (1992)
Repair Kit 3

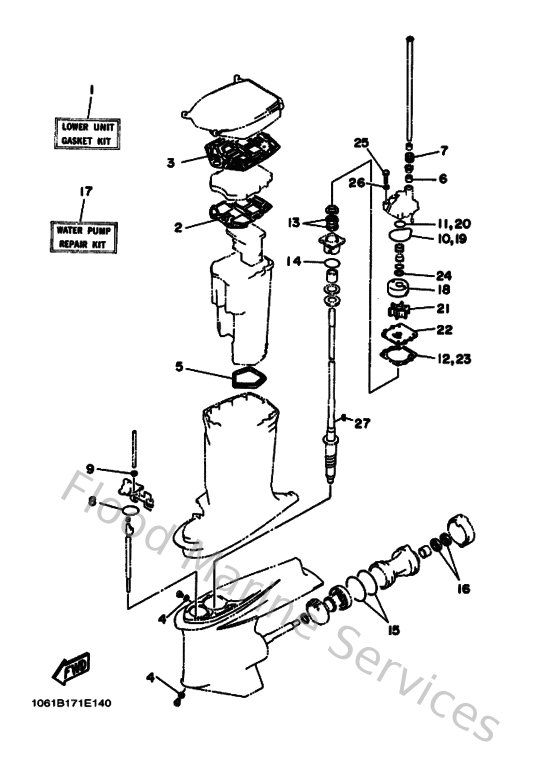

Diagram: Repair Kit 3
Parts List
Reference
Description
Price
1
61AW00012000
Gasket kit, lower unit
Loading…
↗
2
61A411340000
Gasket, exhaust manifold
Loading…
↗
3
61A45114A000
Gasket, upper casing
Loading…
↗
4
904300802000
Gasket
Loading…
↗
5
61A451230000
Gasket, muffler
Loading…
↗
6
6E5443650000
Damper, water seal 1
Loading…
↗
7
6E5443660000
Damper, water seal 2
Loading…
↗
8
932106448800
93210-64488
Loading…
↗
9
931060901400
Oil seal
Loading…
↗
10
9321086M3800
O-ring (6e5)
Loading…
↗
11
9321037M6700
O-ring (6g8)
Loading…
↗
12
6E5443150000
Gasket,water pump
Loading…
↗
13
9310128M1600
Oil seal (6e5)
Loading…
↗
14
932105453400
O-ring (70e)
Loading…
↗
15
932110438400
O-ring (705)
Loading…
↗
16
9310130M1700
Oil seal (6e5)
Loading…
↗
17
61AW00780000
Water pump rerair kit
Loading…
↗
18
61A443220000
Insert, cartridge
Loading…
↗
20
932103716000
O-ring (6g8)
Loading…
↗
21
6E5443520000
Impeller
Loading…
↗
22
6G5443230100
Outer plate, cartridge
Loading…
↗
24
936061201900
Pin, dowel (614)
Loading…
↗
25
973950804500
Bolt, hexagon
Loading…
↗
26
9020908M0200
Washer, plate (688)
Loading…
↗
27
9028004M0500
Key, woodruff (6e5)
Loading…
↗
