E15DMH (2003)
STARTER

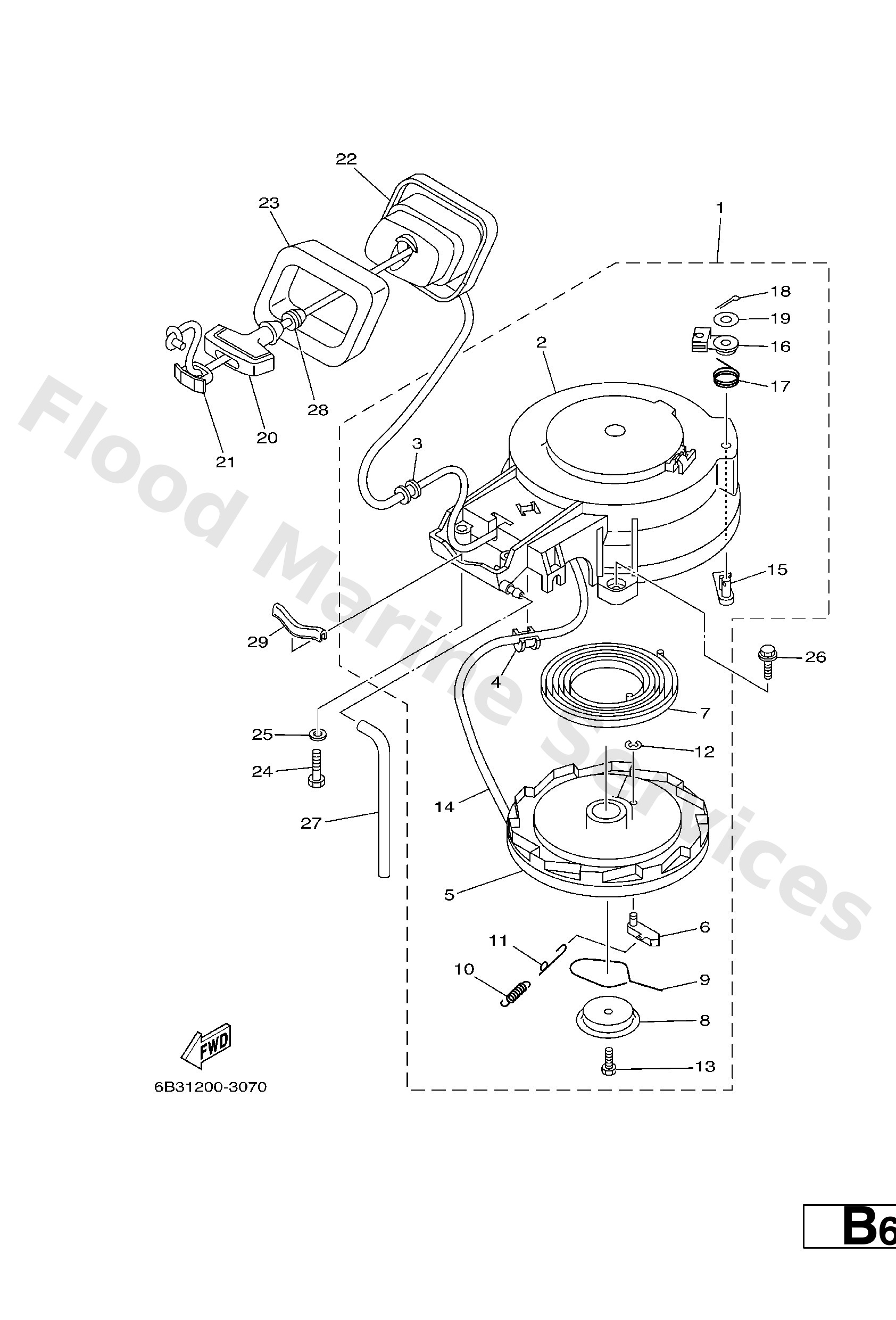

Diagram: STARTER
Parts List
Reference
Description
Price
1
6B4−15710−00
Starter assembly
Loading…
↗
2
6B4−15711−00
Case, Starter
Loading…
↗
3
63V−15764−00
Collar 1
Loading…
↗
4
68T−15764−00
Collar 1
Loading…
↗
5
63V−15714−00
Drum, sheave
Loading…
↗
6
63V−15741−00
Pawl, drive
Loading…
↗
7
63V−15713−00
Spring, starter
Loading…
↗
8
63V−15716−00
Plate, drive
Loading…
↗
9
63V−15705−01
Spring, drive pawl
Loading…
↗
10
63V−15767−01
Spring
Loading…
↗
11
68T−15784−00
Spring, return
Loading…
↗
12
63V−15744−00
Circlip
Loading…
↗
13
63V−15768−00
Screw
Loading…
↗
14
*
item_description
Loading…
↗
15
63V−15794−00
Stopper
Loading…
↗
16
63V−15748−00
Plunger, starter stop
Loading…
↗
17
63V−15734−00
Spring, return
Loading…
↗
18
91490−16018
Pin, cotter (e57)
Loading…
↗
19
63V−15726−00
Washer, flat
Loading…
↗
20
6G1−15755−00
Handle, starter
Loading…
↗
21
6G1−15779−00
Cover
Loading…
↗
22
6B4−15758−00−4D
Guide, rope
Loading…
↗
23
6B4−15762−00
Seal, rubber 2
Loading…
↗
24
97095−06030
Bolt(jf7)
Loading…
↗
25
92995−06600
Washer, plain (646)
Loading…
↗
26
90119−06M82
Bolt, with washer
Loading…
↗
27
6J8−24311−00
Pipe, fuel 2
Loading…
↗
28
6A0−15789−00
Damper
Loading…
↗
29
6B4−15663−00
Seal
Loading…
↗
