150TRB (2003)
STARTING MOTOR

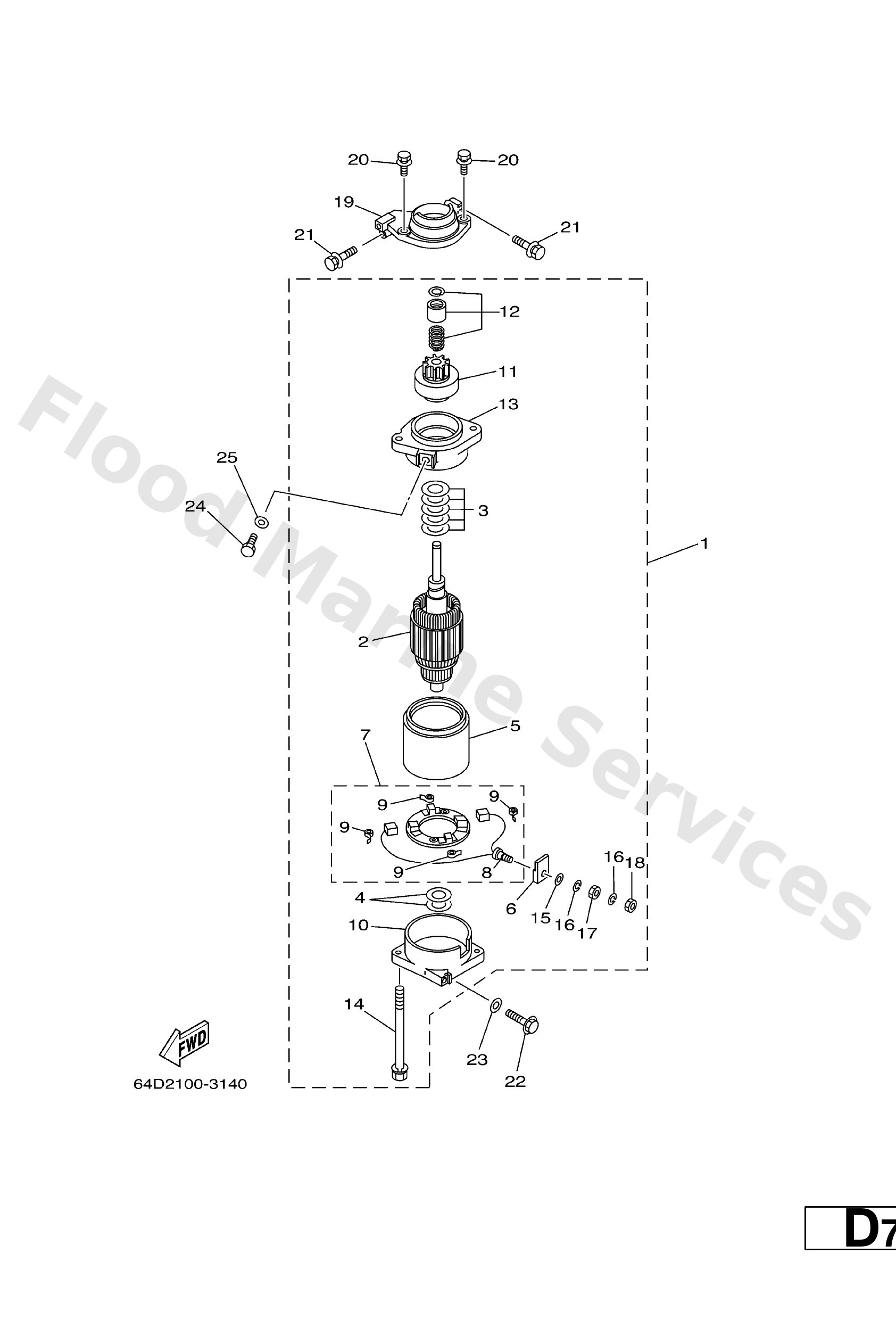

Diagram: STARTING MOTOR
Parts List
Reference
Description
Price
1
6N7−81800−10
Starting motor assembly
Loading…
↗
2
6N7−81850−10
Armature assembly
Loading…
↗
3
61A−81809−00
Washer kit
Loading…
↗
4
61A−81824−00
Washer 2
Loading…
↗
5
6N7−81810−00
Stator assembly
Loading…
↗
6
6K7−8182G−10
Bush, terminal
Loading…
↗
7
6N7−81840−00
Brush holder assembly
Loading…
↗
8
6N7−81801−00
Brush set
Loading…
↗
9
6N7−81813−00
Spring, brush
Loading…
↗
10
6N7−81820−10
Rear bracket assembly
Loading…
↗
11
6N7−81807−00
Gear assembly, starting motor
Loading…
↗
12
6N7−81857−00
Pinion stopper set
Loading…
↗
13
6N7−81830−00
Front bracket assembly
Loading…
↗
14
6K7−81826−10
Bolt
Loading…
↗
15
6E5−8182E−10
Washer, spring
Loading…
↗
16
6E5−8182F−10
Washer,plain
Loading…
↗
17
6E5−8182A−10
Nut
Loading…
↗
18
6E5−8182K−10
Nut
Loading…
↗
19
6R3−81822−00−94
Bracket, starting motor
Loading…
↗
20
90119−08M76
Bolt, with washer(6e5)
Loading…
↗
21
90119−08M77
Bolt, with washer(6e5)
Loading…
↗
22
90119−08M57
Bolt, with washer
Loading…
↗
23
92990−08600
Washer, plain (663)
Loading…
↗
24
97095−08016
Bolt, hexagon deep recess
Loading…
↗
25
92995−08600
Washer, plain (663)
Loading…
↗
