15DWH (1985)
Starter

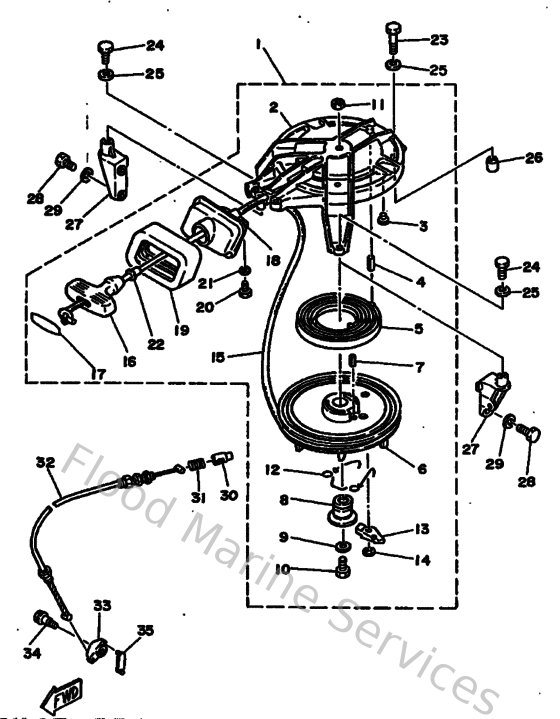

Diagram: Starter
Parts List
Reference
Description
Price
1
6E7157100194
Starter assembly
Loading…
↗
2
682157117194
Case, Starter
Loading…
↗
3
648157730000
Stay 3
Loading…
↗
4
916904001600
Pin, spring (648)
Loading…
↗
5
9051008M0400
Spring, spiral (677)
Loading…
↗
6
677157140094
Drum, sheave
Loading…
↗
7
916904002000
Pin, spring
Loading…
↗
8
677157170100
Shaft
Loading…
↗
9
902010606000
Washer, plate
Loading…
↗
10
973130602000
Bolt(7u8)
Loading…
↗
11
953800660000
Nut(661)
Loading…
↗
12
677157050200
Spring, pawl drive
Loading…
↗
13
677157410100
Pawl, drive
Loading…
↗
14
9343006M0200
Circlip (689)
Loading…
↗
16
619157550100
Handle, starter
Loading…
↗
17
689157790100
Cover
Loading…
↗
18
6E7157580094
Guide, Rope
Loading…
↗
19
6E7157610000
Seal, Rubber 1
Loading…
↗
22
689157890000
Damper
Loading…
↗
27
6E7157710194
Stay 1
Loading…
↗
30
656157480000
Plunger, starter stop
Loading…
↗
32
682157700000
Cable Comp., Starter Stop
Loading…
↗
33
682157460000
Arm
Loading…
↗
35
682157470000
Link
