2BMH (1988)
Starter

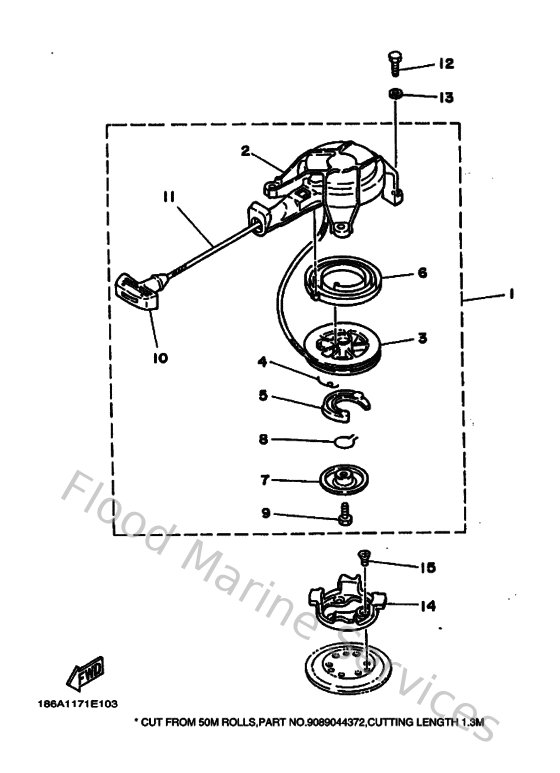

Diagram: Starter
Parts List
Reference
Description
Price
1
6A1157100000
Starter ass'y
Loading…
↗
2
6A1157110000
Case, starter
Loading…
↗
3
6A1157140000
Drum, sheave
Loading…
↗
4
6A1157670000
Spring, return
Loading…
↗
5
6A1157410000
Pawl, drive
Loading…
↗
6
6A1157130000
Spring, starter
Loading…
↗
7
7G5157160000
Plate, drive
Loading…
↗
8
6A1157050000
Spring, drive pawl
Loading…
↗
9
970130601200
Bolt(gh1)
Loading…
↗
10
6A1157550100
Handle, Starter
Loading…
↗
12
973130601600
Bolt, hexagon deep recess
Loading…
↗
13
929900660000
Washer, plain (646)
Loading…
↗
14
6A1157230094
Pulley, starter
Loading…
↗
15
927800601400
Screw flat head
Loading…
↗
