Yamaha Outboard Parts - Starter - 40QMH (1998) | Flood Marine

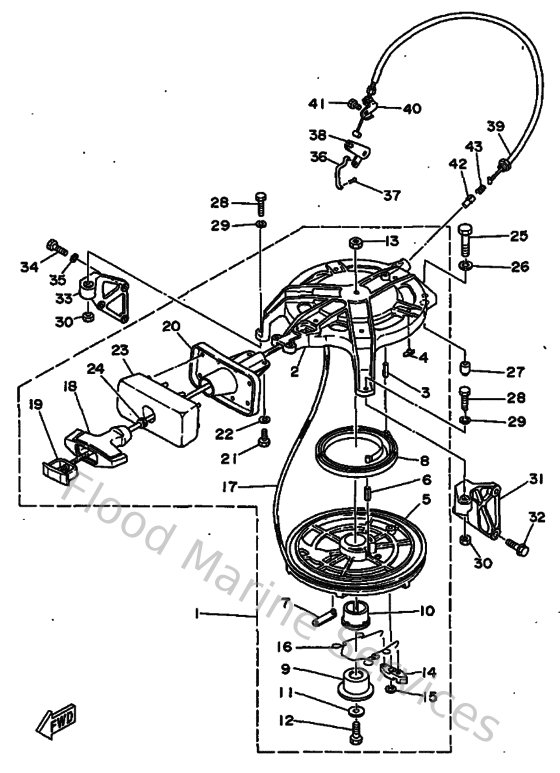

Diagram: Starter

Diagram

Parts List

Reference
Description
Price


1
6R615710014D
Starter Assembly
Loading…

↗
2
676157110194
Case, Starter
Loading…

↗
3
916904002000
Pin, spring
Loading…

↗
4
676157730000
Stay 3
Loading…

↗
7
676157990100
Clip
Loading…

↗
8
9051009M0000
Spring, starter (676)
Loading…

↗
9
676157170000
Shaft, Starter
Loading…

↗
10
9038635M0100
Bushing (676)
Loading…

↗
11
902010860900
Washer, plate
Loading…

↗
12
970130802500
Bolt (682)
Loading…

↗
13
953330860000
Nut(6l2)
Loading…

↗
14
676157410300
Pawl, drive
Loading…

↗
15
9343006M0200
Circlip (689)
Loading…

↗
16
676157050000
Spring, pawl drive
Loading…

↗
18
689157550100
Handle, starter
Loading…

↗
19
6F5157790200
Cover
Loading…

↗
20
6R615758014D
Guide, Rope
Loading…

↗
21
970950601600
Bolt, hexagon deep recess
Loading…

↗
22
929900660000
Washer, plain (646)
Loading…

↗
23
6A0157620100
Seal, rubber 2
Loading…

↗
24
6A0157890000
Damper
Loading…

↗
25
970950804000
Bolt, hexagon
Loading…

↗
26
929900810000
Ybs67-8 washer, spring
Loading…

↗
27
995301201600
Pin, dowel
Loading…

↗
28
970950603000
Bolt(jf7)
Loading…

↗
29
929950610000
Washer(6a1)
Loading…

↗
30
953800660000
Nut(661)
Loading…

↗
32
970800803000
Bolt, hexagon (fj1)
Loading…

↗
34
970950602500
Bolt
Loading…

↗
36
676157470100
Link
Loading…

↗
37
914901601000
Pin, cotter
Loading…

↗
38
676157460000
Arm
Loading…

↗
39
676157700000
Cable Comp., Starter Stop
Loading…

↗
40
6A0157740000
Stay 4
Loading…

↗
41
970130601200
Bolt(gh1)
Loading…

↗
42
656157480000
Plunger, starter stop
Loading…

↗
43
905011022700
Spring, comprreshion(656)
Loading…

↗
