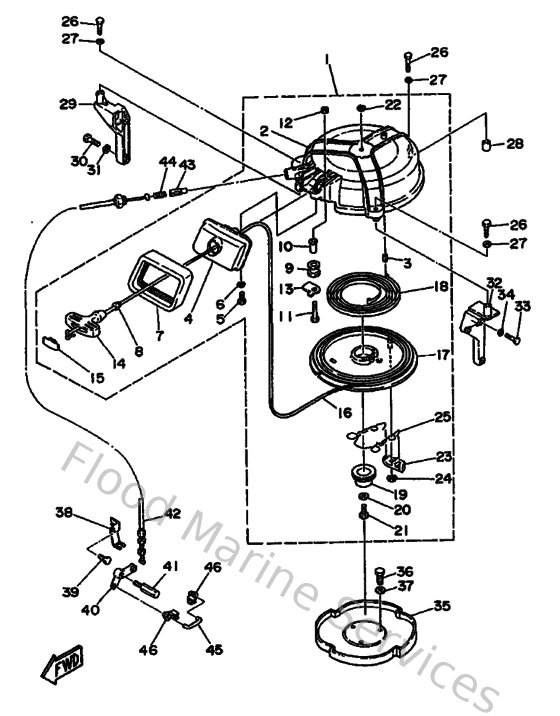

Diagram: Starter

Diagram

Parts List

Reference
Description
Price


1
6H4157100194
Starter assembly
Loading…

↗
2
6H4157110194
Case, starter
Loading…

↗
3
916904001800
Pin spring(664)
Loading…

↗
4
6H4157580094
Guide, Rope
Loading…

↗
5
970950601600
Bolt, hexagon deep recess
Loading…

↗
6
929900660000
Washer, plain (646)
Loading…

↗
7
6H4157620000
Seal, rubber 2
Loading…

↗
8
6A0157890000
Damper
Loading…

↗
10
9038706M6600
Collar (6h4)
Loading…

↗
11
970140603500
Bolt(3rv)
Loading…

↗
12
953800660000
Nut(661)
Loading…

↗
13
6H4157870000
Stay
Loading…

↗
14
619157550100
Handle, starter
Loading…

↗
15
689157790100
Cover
Loading…

↗
17
6H4157140000
Drum, sheave
Loading…

↗
18
905100800200
Spring spiral 656157130000
Loading…

↗
19
6H4157170100
Shaft, starter
Loading…

↗
20
902010606000
Washer, plate
Loading…

↗
21
973130602000
Bolt(7u8)
Loading…

↗
23
676157410300
Pawl, drive
Loading…

↗
24
9343006M0200
Circlip (689)
Loading…

↗
25
6H4157050000
Spring drive pawl assembly
Loading…

↗
26
970130603500
Bolt(3rv)
Loading…

↗
28
995101011400
Pin, dowel(3vd)
Loading…

↗
30
973130803000
Bolt
Loading…

↗
31
929900860000
Washer, plain (663)
Loading…

↗
32
6H4157720200
Stay 2
Loading…

↗
33
973130602500
Bolt
Loading…

↗
36
973130801600
Bolt, hexagon
Loading…

↗
39
970130601200
Bolt(gh1)
Loading…

↗
41
9010906M0400
Bolt
Loading…

↗
42
6H4157701000
Cable Comp., Starter Stop
Loading…

↗
43
656157480000
Plunger, starter stop
Loading…

↗
44
905011022700
Spring, comprreshion(656)
Loading…

↗
46
661412620200
Joint, choke lever
Loading…

↗
