225BETOL (1991)
Starting Motor

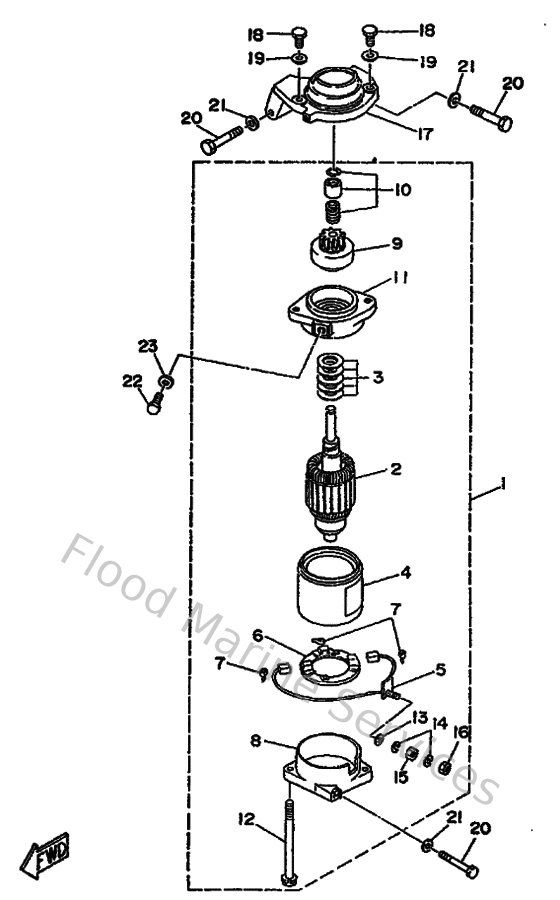

Diagram: Starting Motor
Parts List
Reference
Description
Price
1
61H818000000
Starting motor assembly
Loading…
↗
2
61A818500000
Armature Assembly
Loading…
↗
3
61A818090000
Washer kit
Loading…
↗
5
6K7818011000
Brush Set
Loading…
↗
6
6K7818100000
Stator assembly
Loading…
↗
7
6E5818131000
Spring Brush
Loading…
↗
8
61A818200000
Rear Bracket assembly
Loading…
↗
9
61H818070000
Gear Assembly, Starting Motor
Loading…
↗
10
61H818570000
Retainer
Loading…
↗
11
61A818300000
Front Bracket assembly
Loading…
↗
12
6K7818261000
Bolt
Loading…
↗
13
6E58182E1000
Washer, spring
Loading…
↗
14
6E58182F1000
Washer,plain
Loading…
↗
15
6E58182A1000
Nut
Loading…
↗
16
6E58182K1000
Nut
Loading…
↗
17
6K7818220094
Bracket, starting motor
Loading…
↗
18
970130802500
Bolt (682)
Loading…
↗
19
929900860000
Washer, plain (663)
Loading…
↗
20
970130804500
Bolt
Loading…
↗
22
973950801600
Bolt
Loading…
↗
23
929950860000
Washer, plain (663)
Loading…
↗
