40VMO (1998)
Starting Motor

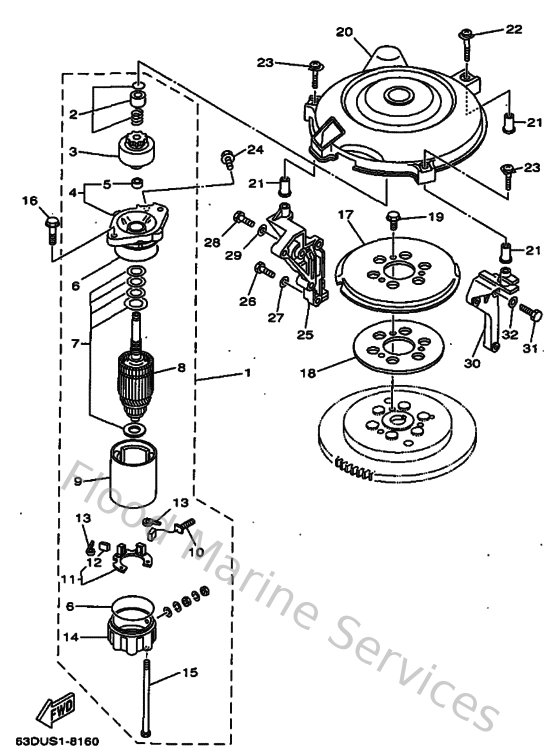

Diagram: Starting Motor
Parts List
Reference
Description
Price
1
6F5818001100
Starting motor assembly
Loading…
↗
2
689818571100
Pinion stopper set
Loading…
↗
3
689818071200
Pinion assembly
Loading…
↗
4
6F5818301100
Front cover assembly
Loading…
↗
5
689818310000
Metal, front
Loading…
↗
6
689818471100
O-ring
Loading…
↗
7
689818091100
Washer kit
Loading…
↗
8
689818501200
Armature assembly
Loading…
↗
9
689818101100
Stator ass'y
Loading…
↗
10
689818111100
Brush 1
Loading…
↗
11
689818401100
Brush holder assembly
Loading…
↗
12
689818121100
Brush 2
Loading…
↗
13
689818131000
Spring, brush
Loading…
↗
14
689818201100
Rear cover ass'y
Loading…
↗
15
689818261000
Bolt
Loading…
↗
16
975130823000
Bolt, with washer (62x)
Loading…
↗
17
6J815723E100
Pulley, starter
Loading…
↗
18
6J881365A000
Gasket, hole cover
Loading…
↗
19
975130821400
Bolt, with washer
Loading…
↗
20
6H4813370100
Cover, flywheel
Loading…
↗
22
9015906M2100
Screw, with washer(61c)
Loading…
↗
23
9015906M2200
Screw, with washer(61c)
Loading…
↗
24
975130821600
Vis Hexagonal Avc Rondelle
Loading…
↗
25
63D15771004D
Stay 1
Loading…
↗
26
970130802500
Bolt (682)
Loading…
↗
27
929900860000
Washer, plain (663)
Loading…
↗
28
970950602000
Bolt(7u8)
Loading…
↗
29
929900660000
Washer, plain (646)
Loading…
↗
30
6H4157720294
Stay 2
Loading…
↗
31
970950602500
Bolt
Loading…
↗
