Yamaha Outboard Parts - Starting Motor - 55BM (1990) | Flood Marine

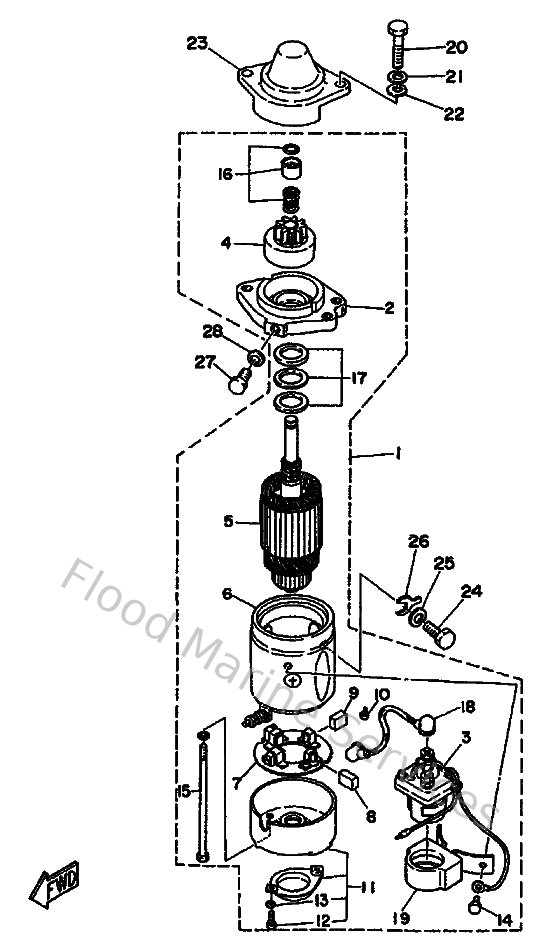

Diagram: Starting Motor

Diagram

Parts List

Reference
Description
Price


1
697818001100
Starting Motor assembly
Loading…

↗
2
676818301000
Front cover assembly
Loading…

↗
3
682819411100
Starter, relay
Loading…

↗
4
663818321100
Pinion assembly
Loading…

↗
5
676818501100
Armature assembly
Loading…

↗
6
663818101100
Stator assembly
Loading…

↗
7
663818401100
Brush holder assembly
Loading…

↗
8
663818111100
Brush 1
Loading…

↗
9
663818121100
Brush 2
Loading…

↗
10
663818131000
Spring, brush
Loading…

↗
12
985800401200
Screw, pan head (686)
Loading…

↗
13
929010410000
Ybs67-4 washer, spring
Loading…

↗
14
973130601000
Bolt
Loading…

↗
15
663818261000
Bolt 1
Loading…

↗
16
676818571000
Pinion stopper set
Loading…

↗
17
697818091000
Washer kit
Loading…

↗
18
697818151000
Wire, lead
Loading…

↗
19
697819521000
Holder, relay
Loading…

↗
20
973130804000
Bolt, Hexagon
Loading…

↗
21
929900810000
Ybs67-8 washer, spring
Loading…

↗
22
929900860000
Washer, plain (663)
Loading…

↗
23
663818420194
Cover 3
Loading…

↗
24
970130802500
Bolt (682)
Loading…

↗
26
663811620000
Washer, Plain
Loading…

↗
27
973130801600
Bolt, hexagon
Loading…

↗
