F20AM (1999)
Starting Motor

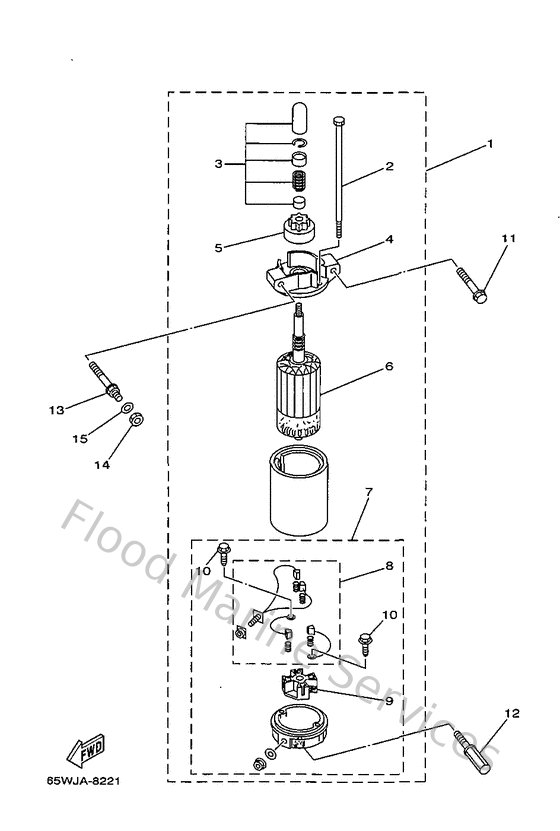

Diagram: Starting Motor
Parts List
Reference
Description
Price
1
65W818000000
Starting motor assembly
Loading…
↗
2
65W818260000
Bolt
Loading…
↗
3
65W818570000
Pinion Stopper Set
Loading…
↗
4
65W818300000
Front Bracket assembly
Loading…
↗
5
65W818070000
Gear assembly, starting motor
Loading…
↗
6
65W818500000
Armature assembly
Loading…
↗
7
65W818200000
Rear bracket assembly
Loading…
↗
8
65W818010000
Brush set
Loading…
↗
9
65W818400000
Brush holder assembly
Loading…
↗
10
65W8182S0000
Screw
Loading…
↗
11
9011908M3900
Bolt, with washer
Loading…
↗
12
9010908M7700
Bolt
Loading…
↗
13
9010908M7800
Bolt
Loading…
↗
14
953800870000
Nut(661)
Loading…
↗
15
929900860000
Washer, plain (663)
Loading…
↗
