Yamaha Outboard Parts - Starting Motor - Z150PETOL (2001) | Flood Marine

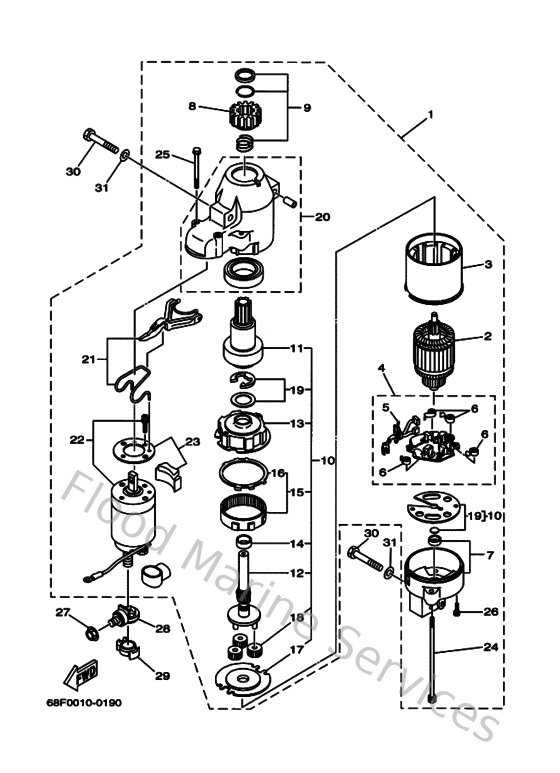

Diagram: Starting Motor

Diagram

Parts List

Reference
Description
Price


1
68F818000100
Starting motor assembly
Loading…

↗
2
67F818500000
Armature assembly
Loading…

↗
3
67F818100000
Stator assembly
Loading…

↗
4
68F818400000
Brush holder assembly
Loading…

↗
5
67F818010000
Brush set
Loading…

↗
6
67F818130000
Spring, brush
Loading…

↗
7
68F818200000
Rear bracket assembly
Loading…

↗
8
67F818080000
Pinion assembly
Loading…

↗
9
67F818570000
Pinion stopper set
Loading…

↗
10
67F818070000
Gear assembly, starting motor
Loading…

↗
11
67F818320000
Clutch, over run
Loading…

↗
12
67F818360000
Shaft, pinion
Loading…

↗
13
67F818210000
Bracket, center 1
Loading…

↗
14
67F818410000
Bearing
Loading…

↗
15
67F818910000
Gear, ring
Loading…

↗
16
67F8183R0000
Gasket
Loading…

↗
17
67F818300000
Bracket, center 2
Loading…

↗
18
60V8183T0000
Gear, idler
Loading…

↗
19
67F818090000
Washer kit
Loading…

↗
20
67F818420000
Cover
Loading…

↗
21
67F818390000
Lever assembly
Loading…

↗
22
68F819410100
Starter Relay assembly
Loading…

↗
23
67F818690000
Cover, dust
Loading…

↗
24
6K7818261000
Bolt
Loading…

↗
25
67F818280000
Bolt 2
Loading…

↗
26
67F818460000
Screw
Loading…

↗
27
901790800300
Nut
Loading…

↗
28
68F819250000
Terminal
Loading…

↗
29
68F825820000
Cover, wire harness
Loading…

↗
30
970130804500
Bolt
Loading…

↗
31
929030860000
Washer, plain (663)
Loading…

↗
