15FWH (1995)
Steering

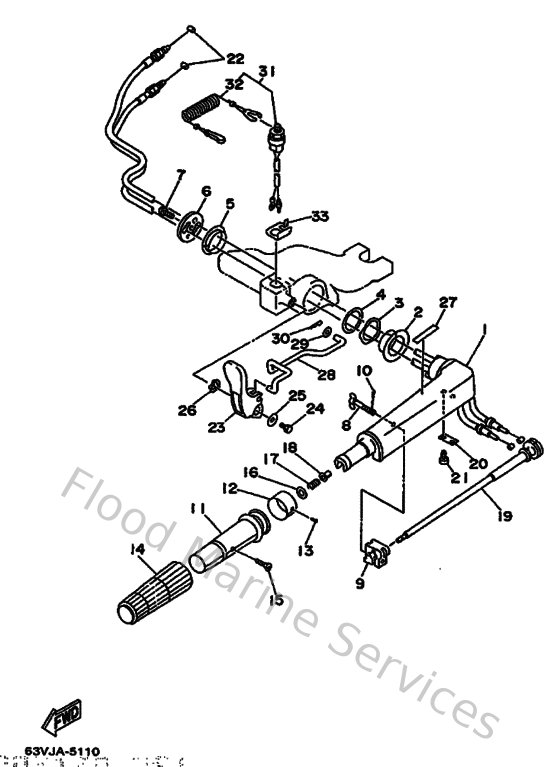

Diagram: Steering
Parts List
Reference
Description
Price
1
6G142111104D
Handle, steering
Loading…
↗
2
9038634M9700
Bush(63v)
Loading…
↗
3
9020636M2100
Washer, wave(63v)
Loading…
↗
4
9020236M5500
Washer, plate(63v)
Loading…
↗
5
9038633M9600
Bush(63v)
Loading…
↗
6
6G1421310100
Cover, handle steering
Loading…
↗
7
970950602000
Bolt(7u8)
Loading…
↗
8
6G1421250100
Bolt, friction adjusting
Loading…
↗
9
6EEG21260000
Friction, steering
Loading…
↗
10
914901601000
Pin, cotter
Loading…
↗
11
664421190000
Grip, steering handle
Loading…
↗
12
6H2421370000
Indicator, throttle
Loading…
↗
13
9026902M0900
Rivet(6l5)
Loading…
↗
14
6G1421770000
Rubber, handle
Loading…
↗
15
9014905M1300
Screw, countersunk
Loading…
↗
16
929901060000
Washer, plate
Loading…
↗
17
905012321500
Spring (655)
Loading…
↗
18
903860803200
Bushing (650)
Loading…
↗
19
6G1421380100
Lever, throttle
Loading…
↗
20
6E0421590200
Stay
Loading…
↗
21
978850501200
Screw,pan head (646)
Loading…
↗
22
6L2263010100
Throttle cable assembly
Loading…
↗
23
63V441110000
Handle, Gear Shift
Loading…
↗
24
970950601200
Bolt(gh1)
Loading…
↗
25
9020106M0200
Washer,plate (6k8)
Loading…
↗
26
9020613M1000
Washer, wave (6e5)
Loading…
↗
27
6E0441911100
Indicator, shift
Loading…
↗
28
63V441240000
Link, shift rod
Loading…
↗
29
902020600900
Washer plate 626427510000
Loading…
↗
30
904681000300
Pin, hair 6474123500
Loading…
↗
31
6H4825750200
Engine stop switch assembly
Loading…
↗
32
682825560000
Lanyard, stop switch
Loading…
↗
33
63V825390000
Stay, Stop Switch
Loading…
↗
