Yamaha Outboard Parts - Steering - 15FWH (1998) | Flood Marine

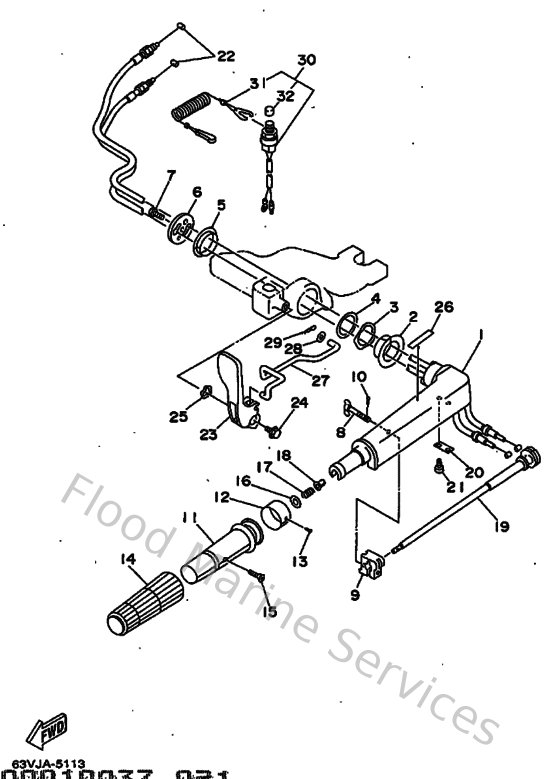

Diagram: Steering

Diagram

Parts List

Reference
Description
Price


1
6G142111114D
Handle, steering
Loading…

↗
2
9038634M9700
Bush(63v)
Loading…

↗
3
9020636M2100
Washer, wave(63v)
Loading…

↗
4
9020236M5500
Washer, plate(63v)
Loading…

↗
5
9038633M9600
Bush(63v)
Loading…

↗
6
6G1421310100
Cover, handle steering
Loading…

↗
7
970950602000
Bolt(7u8)
Loading…

↗
8
6G1421250100
Bolt, friction adjusting
Loading…

↗
9
6EEG21260000
Friction, steering
Loading…

↗
10
914901601000
Pin, cotter
Loading…

↗
11
664421190000
Grip, steering handle
Loading…

↗
12
6H2421370000
Indicator, throttle
Loading…

↗
13
9026902M0900
Rivet(6l5)
Loading…

↗
14
6G1421770000
Rubber, handle
Loading…

↗
15
9014905M1300
Screw, countersunk
Loading…

↗
16
929901060000
Washer, plate
Loading…

↗
17
905012321500
Spring (655)
Loading…

↗
18
903860803200
Bushing (650)
Loading…

↗
19
6G1421380100
Lever, throttle
Loading…

↗
20
6E0421590200
Stay
Loading…

↗
21
978850501200
Screw,pan head (646)
Loading…

↗
22
6L2263010000
Throttle cable assembly
Loading…

↗
23
63V441110100
Handle, Gear Shift
Loading…

↗
24
9011906M0900
Bolt, with washer
Loading…

↗
25
9020613M1000
Washer, wave (6e5)
Loading…

↗
26
6E0441911100
Indicator, shift
Loading…

↗
27
63V441240100
Link, shift rod
Loading…

↗
28
902020600900
Washer plate 626427510000
Loading…

↗
29
904681800800
Clip 620436610000
Loading…

↗
30
63V825750000
Engine stop switch assembly
Loading…

↗
31
682825560000
Lanyard, stop switch
Loading…

↗
32
6898257Y0000
Cap
Loading…

↗
