Yamaha Outboard Parts - Steering - 25QEO (1996) | Flood Marine

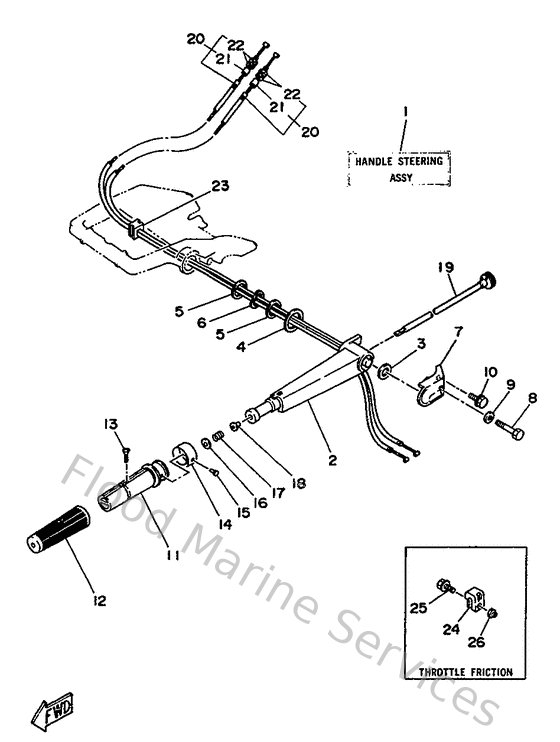

Diagram: Steering

Diagram

Parts List

Reference
Description
Price


1
61NW0084004D
Handle Steering Assembly (Ref. # 2~23)
Loading…

↗
2
69442111004D
Handle, Steering
Loading…

↗
3
905601407600
Spacer 648421550000
Loading…

↗
4
902023404300
Spacer Handle 2 (648)
Loading…

↗
5
9020128M0000
Rondelle, Plate
Loading…

↗
6
9020628M0700
Rondelle, Ondulee
Loading…

↗
7
68942112004D
Handle, steering
Loading…

↗
8
970800605000
Bolt(jf7)
Loading…

↗
9
929900660000
Washer, plain (646)
Loading…

↗
10
975950652000
Bolt(7u8)
Loading…

↗
11
664421190000
Grip, steering handle
Loading…

↗
12
6G1421770000
Rubber, handle
Loading…

↗
13
901520501100
Screw, countersunk
Loading…

↗
14
689421372000
Indicator, Throttle
Loading…

↗
15
9026902M0900
Rivet(6l5)
Loading…

↗
16
929901060000
Washer, plate
Loading…

↗
17
905012321500
Spring (655)
Loading…

↗
18
903860803200
Bushing (650)
Loading…

↗
19
689421380000
Lever, throttle
Loading…

↗
20
61N263110100
Cable, throttle 1
Loading…

↗
21
9012306M0000
Bolt(6A9)
Loading…

↗
22
901700618300
Nut, hexagon(664)
Loading…

↗
23
61N263260000
Grommet
Loading…

↗
24
656421260100
Piece, friction
Loading…

↗
25
970950602000
Bolt(7u8)
Loading…

↗
26
901850606200
Nut selflocking (656)
Loading…

↗
